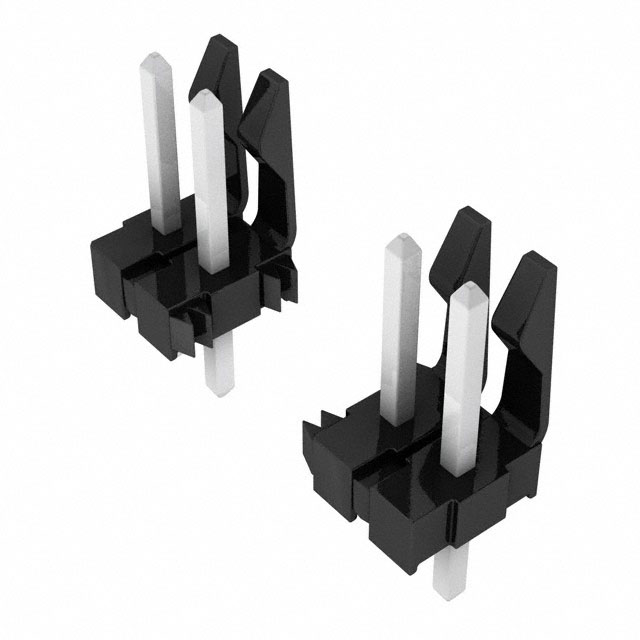

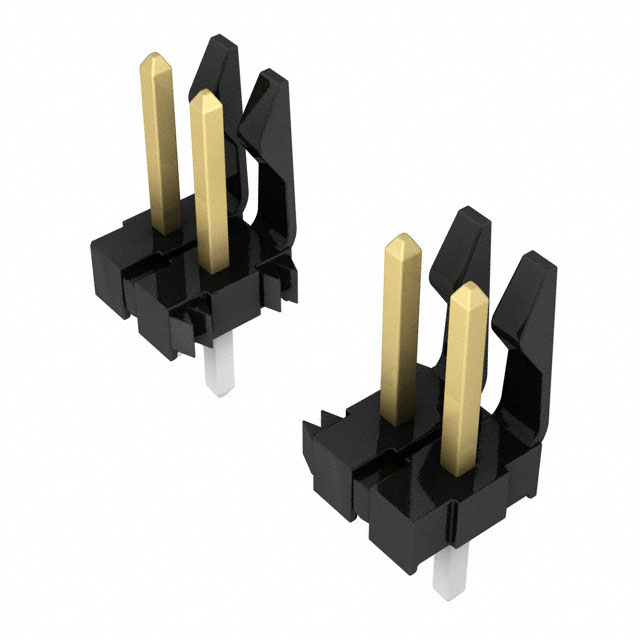

041671 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 12POS 3.96MM

Part	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Finish - Mating	Insulation Height	Insulation Height	Connector Type	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Shrouding	Fastening Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Overall Contact Length	Overall Contact Length	Mounting Type	Insulation Color	Contact Type	Pitch - Mating	Pitch - Mating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Material	Style	Number of Rows	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded
Molex 0416710034	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	UL94 V-0	Brass	Board to Board Cable	1	12
Molex 0416710018	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	15 µin	0.38 µm	UL94 V-0	Brass	Board to Board Cable	1	19
Molex 0416710012	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	15 µin	0.38 µm	UL94 V-0	Brass	Board to Board Cable	1	13
Molex 0416710023	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	15 µin	0.38 µm	UL94 V-0	Brass	Board to Board Cable	1	24
Molex 0416710036	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	UL94 V-0	Brass	Board to Board Cable	1	14
Molex 0416713429	0.172 in	4.37 mm	Square		0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	1.52 µm	60 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	60 Áin	1.52 Ám	UL94 V-0	Brass	Board to Board Cable	1	8
Molex 0416710016	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	15 µin	0.38 µm	UL94 V-0	Brass	Board to Board Cable	1
Molex 0416710550	0.192 in	4.88 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin			Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.8 in	20.32 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	20 µin	0.51 µm	UL94 V-0	Brass	Board to Board Cable	1		0.48 in	12.19 mm
Molex 0416710029	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header	All	Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	2.54 µm	100 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	UL94 V-0	Brass	Board to Board Cable	1	7

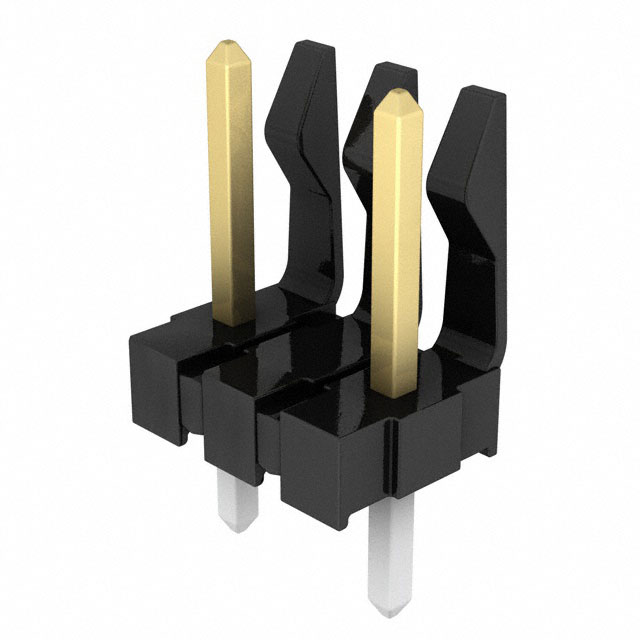

Molex 0416713473	0.172 in	4.37 mm	Square	Gold	0.5 in	12.7 mm	Breakaway Header		Tin	11.43 mm	0.45 in	Shrouded - 1 Wall	Friction Lock	Solder	1.52 µm	60 µin	Polyester	0.75 in	19.05 mm	Through Hole	Black	Male Pin	0.156 in	3.96 mm	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	UL94 V-0	Brass	Board to Board Cable	1				2
