3281 Series

Catalog

CONN SPLICE 16-22 AWG CRIMP

Part	Terminal Type	Termination	Number of Wire Entries	Features	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Mounting Type	Length - Overall [x]	Length - Overall	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Material	Tab Thickness	Tab Thickness	Wire Gauge	Contact Finish	Terminal Style	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Stud/Tab Size	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]
TE Connectivity Raychem Cable Protection 328134	Butt Splice Individual Openings Inline	Crimp	2	Brazed Seam Serrated Mating Area	22 AWG	16 AWG	Non-Insulated
TE Connectivity Raychem Cable Protection 328160	Standard	Barrel Crimp					Non-Insulated	17.53 mm	0.69 in	Free Hanging (In-Line)	1.41 in	35.81 mm	6.99 mm	0.275 "	Copper	2.03 mm	0.08 in	4 AWG	Tin	No Stud Hole	9.55 mm	0.376 in

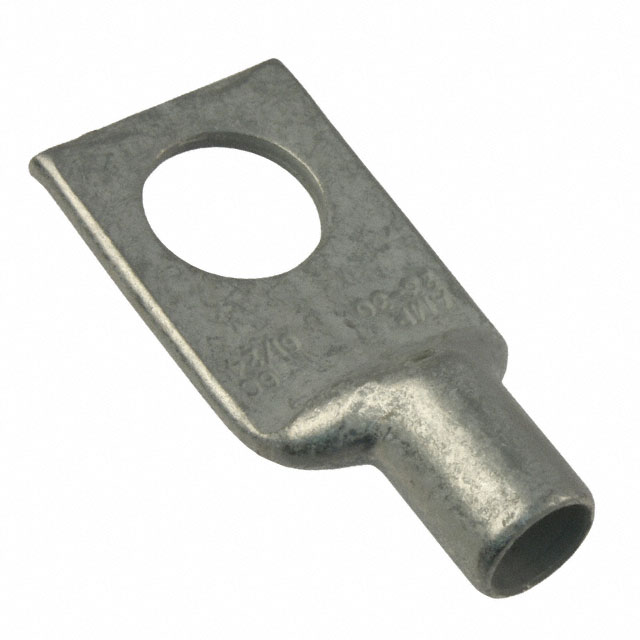

TE Connectivity Raychem Cable Protection 328144	Standard	Crimp					Non-Insulated	16.76 mm	0.66 in	Free Hanging (In-Line)	1.41 in	35.81 mm	5.56 mm	0.219 in	Copper	1.52 mm	0.06 in	6 AWG	Tin	Single Stud Hole	7.98 mm	0.314 in	3/8 Stud	9.91 mm	0.39 in
TE Connectivity Raychem Cable Protection 328164	Standard	Barrel Crimp					Non-Insulated	17.53 mm	0.69 in	Free Hanging (In-Line)	1.41 in	35.81 mm	6.99 mm	0.275 "	Copper	2.03 mm	0.08 in	4 AWG	Tin	Single Stud Hole	9.55 mm	0.376 in	3/8 Stud	9.91 mm	0.39 in
