SLW8 Series

Catalog

CONN CIC BOTTOM 8POS 1MM R/A

Part	Housing Color	Actuator Color	Locking Feature	Cable End Type	Actuator Material	Connector/Contact Type	Contact Finish	Voltage Rating	Termination	Number of Positions	FFC, FCB Thickness	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Contact Material	Mounting Type	Material Flammability Rating	Housing Material	Pitch	Pitch	Mating Cycles	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SLW8R-5A7LF	Black	Black	Slide Lock	Tapered	Glass Filled Nylon Polyamide (PA)	Contacts Bottom	Tin	100 V	Kinked Pin	8	0.3 mm	CIC	-55 C	85 °C	0.157 in	4 mm	Phosphor Bronze	Right Angle Through Hole	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 mm	0.039 in

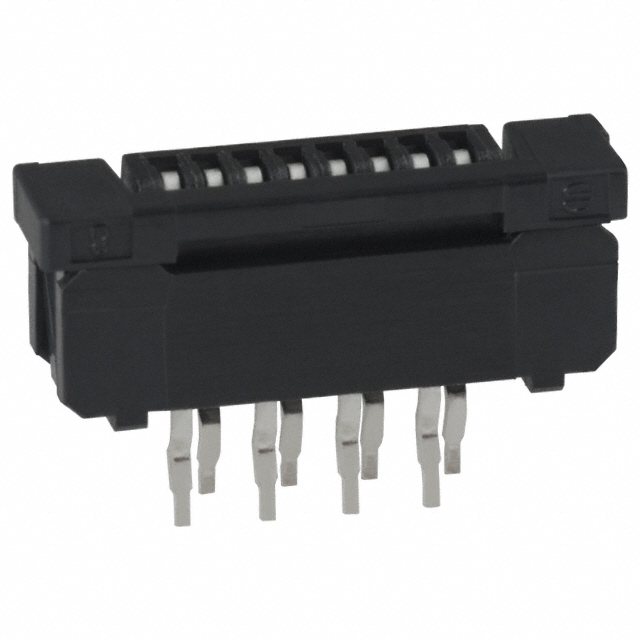

Amphenol ICC (FCI) SLW8S-1C7	Black	Black	Slide Lock	Straight Tapered	Glass Filled Nylon Polyamide (PA)	Contacts Vertical - 1 Sided	Tin Alloy	100 V	Kinked Pin	8		FFC FPC	-55 C	105 ░C	0.217 in	5.5 mm	Phosphor Bronze	Through Hole	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 mm	0.039 in	20	0.3 mm	0.33 mm
Amphenol ICC (FCI) SLW8S-1C7LF	Black		Latch Lock		Glass Filled Nylon Polyamide (PA)	Contacts Vertical - 1 Sided	Tin	100 V	Kinked Pin	8	0.33 mm	FFC FPC	-55 C	85 °C	0.217 in	5.5 mm	Phosphor Bronze	Through Hole	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 mm	0.039 in	20

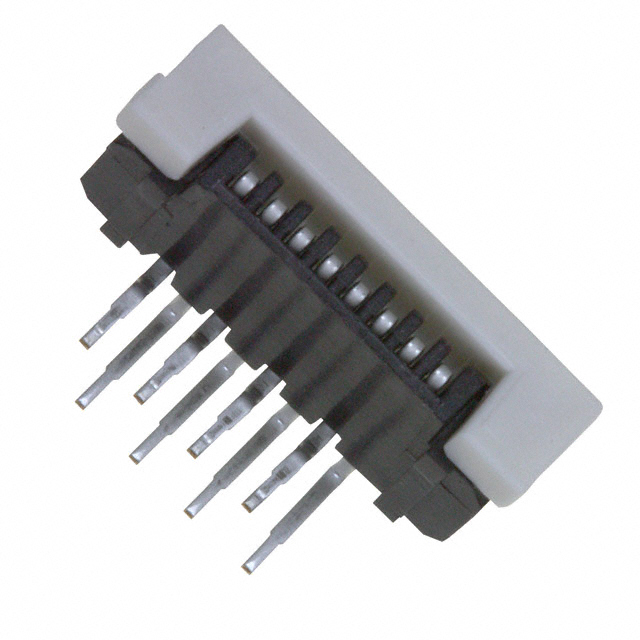

Amphenol ICC (FCI) SLW8R-5C7LF	Black	White	Slide Lock	Tapered	Glass Filled Nylon Polyamide (PA)	Contacts Bottom	Tin	100 V	Kinked Pin	8	0.3 mm	CIC	-55 C	85 °C	0.157 in	4 mm	Phosphor Bronze	Right Angle Through Hole	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 mm	0.039 in	20
