629-W09 Series
Manufacturer: EDAC Inc.
Beta
⌘K

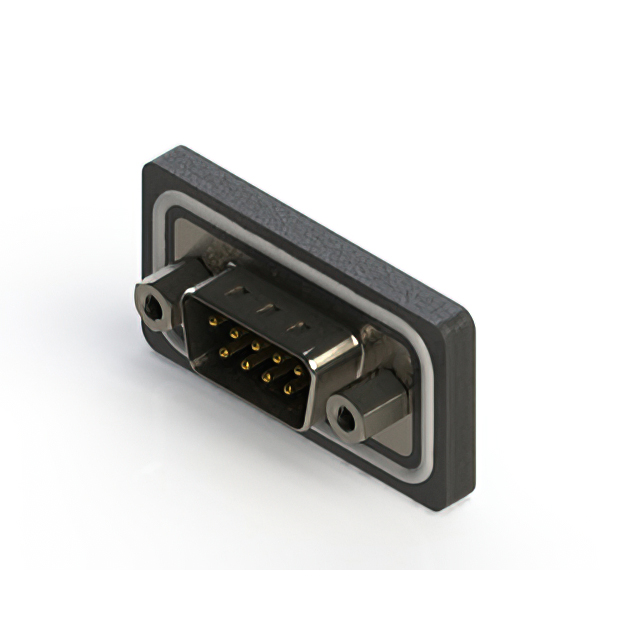

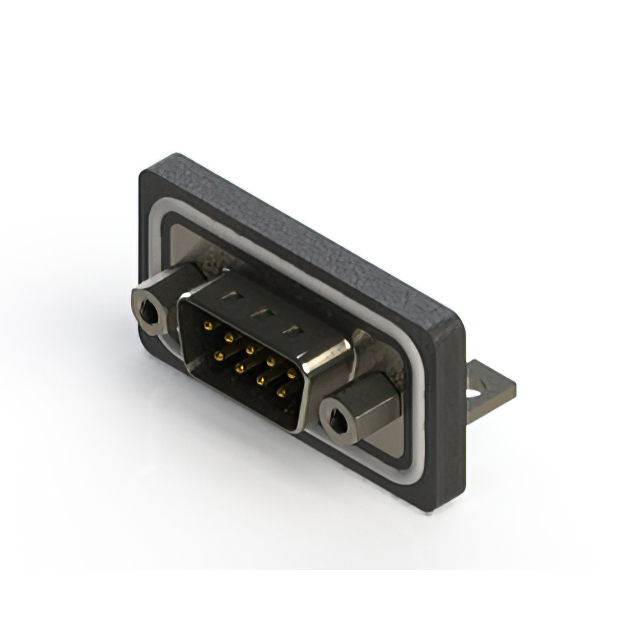

D SUB CONNECTOR, DB9, IP67, STANDARD, PLUG, 629 SERIES, 9 CONTACTS, DE, SOLDER
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Current Rating (Amps) | Flange Feature | Backset Spacing | Backset Spacing | Number of Positions | Connector Type | Features | Contact Finish | Connector Style | Shell Material, Finish | Ingress Protection | Material Flammability Rating | Contact Finish Thickness | Termination | Contact Type | Number of Rows [custom] | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 5 A | 4-40 Mating Side Female Screwlock | 10.3 mm | 0.406 in | 9 | Plug Male Pins | Grounding Indents | Gold | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | Solder | Signal | 2 | Panel Mount Right Angle Through Hole | 1 | DE E | ||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 5 A | 4-40 Mating Side Female Screwlock | 10.3 mm | 0.406 in | 9 | Plug Male Pins | Grounding Indents Mounting Brackets Shielded | Gold | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | UL94 V-0 | Solder | Signal | 2 | Right Angle Through Hole | 1 | DE E | 0.38 µm | 15 µin | |
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 5 A | 4-40 Mating Side Female Screwlock | 10.3 mm | 0.406 in | 9 | Plug Male Pins | Grounding Indents Shielded | Gold | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | UL94 V-0 | Solder | Signal | 2 | Right Angle Through Hole | 1 | DE E | 0.38 µm | 15 µin | |
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 5 A | 4-40 Mating Side Female Screwlock | 10.3 mm | 0.406 in | 9 | Plug Male Pins | Grounding Indents Mounting Brackets Shielded | Gold | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | UL94 V-0 | Solder | Signal | 2 | Right Angle Through Hole | 1 | DE E | 0.76 Ám | 30 Áin | |
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 5 A | 4-40 Mating Side Female Screwlock | 10.3 mm | 0.406 in | 9 | Plug Male Pins | Grounding Indents Shielded | Gold | Combo D-Sub | Nickel Plated Steel | IP67 - Dust Tight Waterproof | UL94 V-0 | Solder | Signal | 2 | Right Angle Through Hole | 1 | DE E | 0.76 Ám | 30 Áin |
