600R160 Series

PTC 60V/600V POLYFUSE TELECOM .160A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

PTC 60V/600V POLYFUSE TELECOM .160A

Part	Current - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Type	Lead Spacing	Lead Spacing	Mounting Type	Approval Agency	Package / Case	Current - Hold (Ih) (Max)	Voltage - Max [Max]	Voltage - Max	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

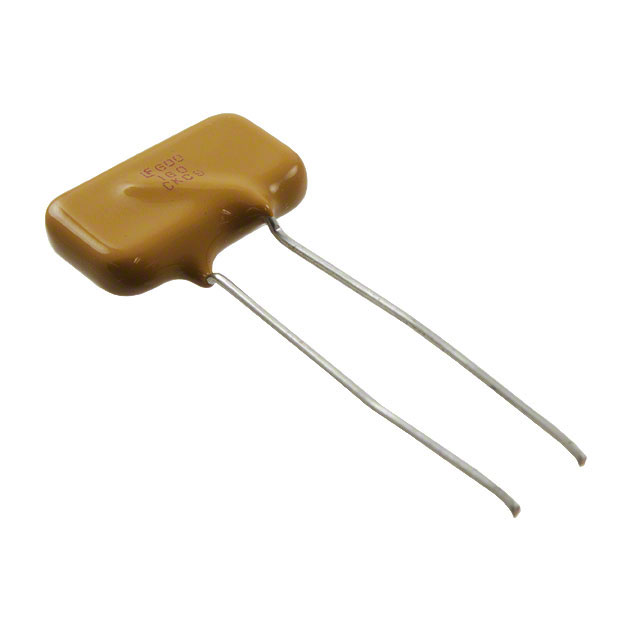

Littelfuse/Commercial Vehicle Products 600R160UR	3 A	18 Ohms	Polymeric	5.1 mm	0.201 in	Through Hole	cURus TUV	Disc Radial	160 mA	60 V	600 V	320 mA	4 Ohms	85 °C	-40 °C	0.496 "	12.6 mm

Catalog

PTC 60V/600V POLYFUSE TELECOM .160A

Key Features

• 0.15 — 0.16A Hold current range, 60VDC operating voltage

• 600VAC interrupt rating

• Fast time-to-trip

• Binned and sorted narrow resistance ranges available

• Lead-free, halogen-free, and RoHS compliant

Description

The 600R series is designed to protect against power fault events typically found in telecom applications. This series is designed to be used in applications that need to meet the requirements of GR-1089-CORE and UL60950/EN60950/IEC60950. These resettable devices also meet the requirements of ITU K.20, K.21 and K.44.
