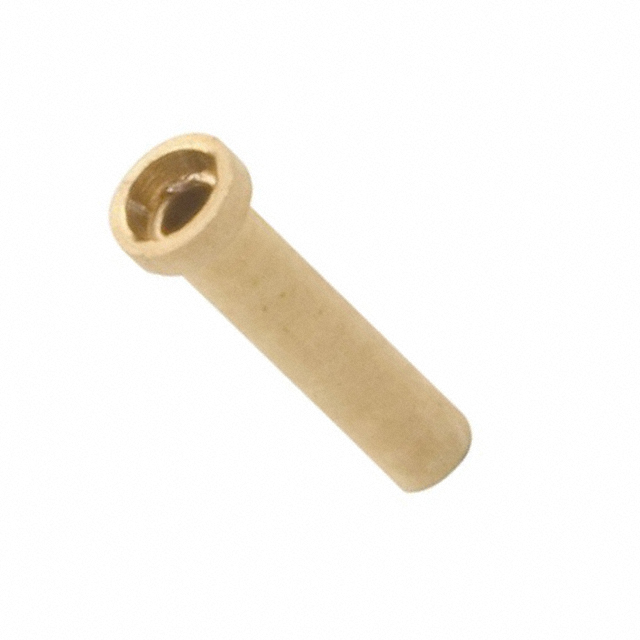

H3191 Series

Catalog

IC & COMPONENT SOCKET, 1 CONTACTS, PCB SOCKET, BERYLLIUM COPPER

Part	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Tail Type	Contact Finish	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]
Harwin Inc. H3191-01	6 N	2 N	-55 C	125 °C	4.45 mm	0.175 "	No Tail	Gold	Beryllium Copper	0.057 in	1.45 mm	Solder	1.09 mm	0.043 in	0.99 mm	0.039 in	0.193 in	4.9 mm	0.46 mm	0.51 mm	0.02 in	0.018 in
Harwin Inc. H3191-05	6 N	2 N	-55 C	125 °C	4.45 mm	0.175 "	No Tail	Gold	Beryllium Copper	0.057 in	1.45 mm	Solder	1.09 mm	0.043 in	0.99 mm	0.039 in	0.193 in	4.9 mm	0.46 mm	0.51 mm	0.02 in	0.018 in
