S-1132 Series

Catalog

IC REG LINEAR 4.3V 300MA SOT23-5

...

Part	Current - Output	Voltage - Output (Min/Fixed) [Min]	Supplier Device Package	Current - Supply (Max) [Max]	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	PSRR	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Control Features	Number of Regulators	Output Configuration	Current - Quiescent (Iq)	Mounting Type	Voltage - Output (Min/Fixed)
ABLIC Inc. S-1132B43-M5T1U	300 mA	4.3 V	SOT-23-5	40 µA	Over Current	85 C	-40 ¯C	SC-74A SOT-753	65 dB	0.15 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount
ABLIC Inc. S-1132B29-M5T1G	300 mA	2.9 V	SOT-23-5	40 µA	Over Current	85 C	-40 ¯C	SC-74A SOT-753	70 db	0.21 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount
ABLIC Inc. S-1132B15-U5T1U	300 mA		SOT-89-5	40 µA	Over Current	85 C	-40 ¯C	SOT-89-5/6	70 db	0.58 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount	1.5 V
ABLIC Inc. S-1132B45-M5T1G	300 mA	4.5 V	SOT-23-5	40 µA	Over Current	85 C	-40 ¯C	SC-74A SOT-753	65 dB	0.15 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount
ABLIC Inc. S-1132B36-U5T1G	300 mA		SOT-89-5	40 µA	Over Current	85 C	-40 ¯C	SOT-89-5/6	65 dB	0.15 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount	3.6 V

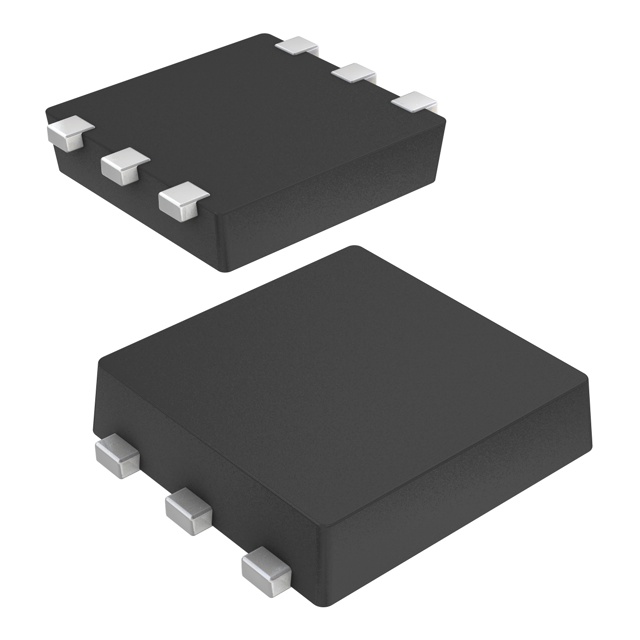

ABLIC Inc. S-1132B50-I6T2G	300 mA		SNT-6A	40 µA	Over Current	85 C	-40 ¯C	6-SMD Flat Leads	65 dB	0.15 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount	5 V
ABLIC Inc. S-1132B17-U5T1G	300 mA		SOT-89-5	40 µA	Over Current	85 C	-40 ¯C	SOT-89-5/6	70 db	0.58 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount	1.7 V
ABLIC Inc. S-1132B17-M5T1G	300 mA		SOT-23-5	40 µA	Over Current	85 C	-40 ¯C	SC-74A SOT-753	70 db	0.58 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount	1.7 V
ABLIC Inc. S-1132B40-M5T1G	300 mA		SOT-23-5	40 µA	Over Current	85 C	-40 ¯C	SC-74A SOT-753	65 dB	0.15 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount	4 V
ABLIC Inc. S-1132B40-I6T2U	300 mA		SNT-6A	40 µA	Over Current	85 C	-40 ¯C	6-SMD Flat Leads	65 dB	0.15 V	6.5 V	Enable	1	Positive	1 µA	Surface Mount	4 V
