DF02S1 Series

1.5A Bridge Rectifier

Catalog

1.5A Bridge Rectifier

Part	Voltage - Forward (Vf) (Max) @ If	Technology	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Reverse Leakage @ Vr	Package / Case	Diode Type	Mounting Type

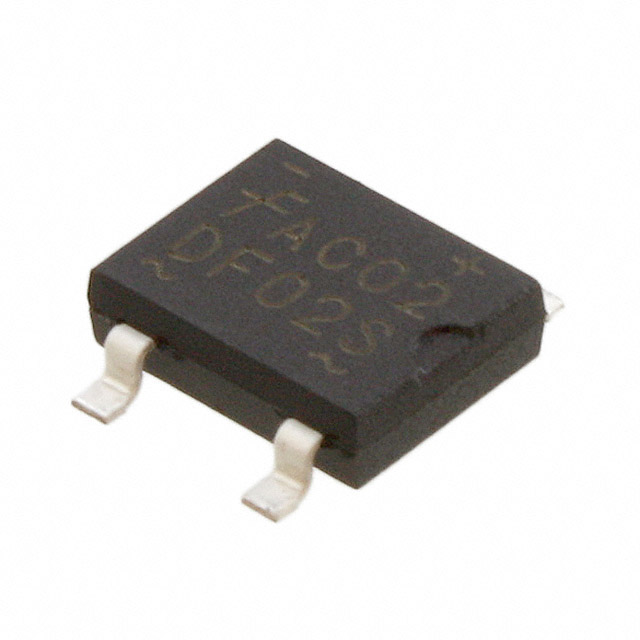

ON Semiconductor DF02S1	1.1 V	Standard	4-SDIP	200 V	1 A	-55 °C	150 °C	3 µA	4-SMD Gull Wing	Single Phase	Surface Mount
ON Semiconductor DF02S1	1.1 V	Standard	4-SDIP	200 V	1 A	-55 °C	150 °C	3 µA	4-SMD Gull Wing	Single Phase	Surface Mount

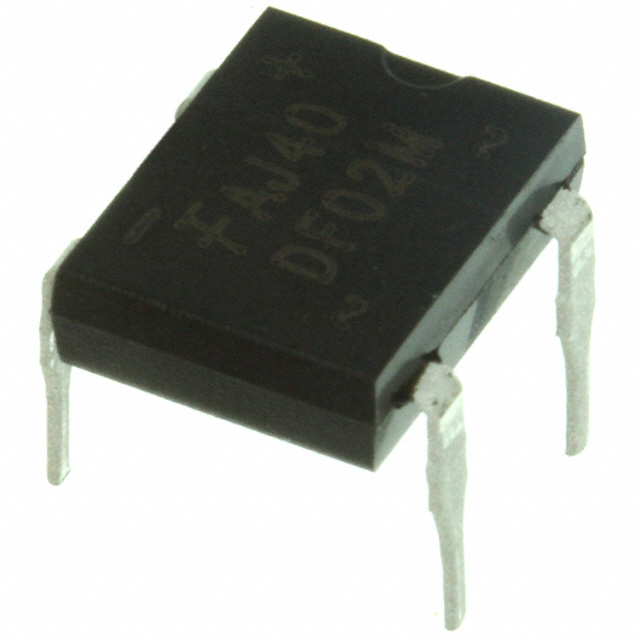

ON Semiconductor DF02M	1.1 V	Standard	4-DIP	200 V	1.5 A	-55 °C	150 °C	5 µA	4-EDIP (0.300" 7.62mm)	Single Phase	Through Hole

Catalog

1.5A Bridge Rectifier

Key Features

• Maximum Surge Rating: IFSM= 35 A, I2t = 5.1 A2Sec

• Optimized VF: Typical 0.95 V at 1 A, 25°C

• DF10S Socket Compatible

• Glass Passivated Junctions

• Space Saving

• Lead Free in Comply with EU RoHS 2002/95/EU Directives

• Green Molding Compound: IEC61249 Halogen Free

• Qualified with IR Reflow and Wave Soldering

Description

With the ever-pressing need to improve power supply efficiency, improve surge rating, improve reliability, and reduce size, the DFxS1 family sets a new standard in performance and cost saving.The DFxS1 family balances performance against cost. The design offers a moderate surge rating of 35 A required to handle inrush surge and maintain good reliability, with fair price.The DFxS1 achieves good performance in a SDIP surface mount form factor, reducing board space and volumetric requirements vs. competitive devices.
