80163 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

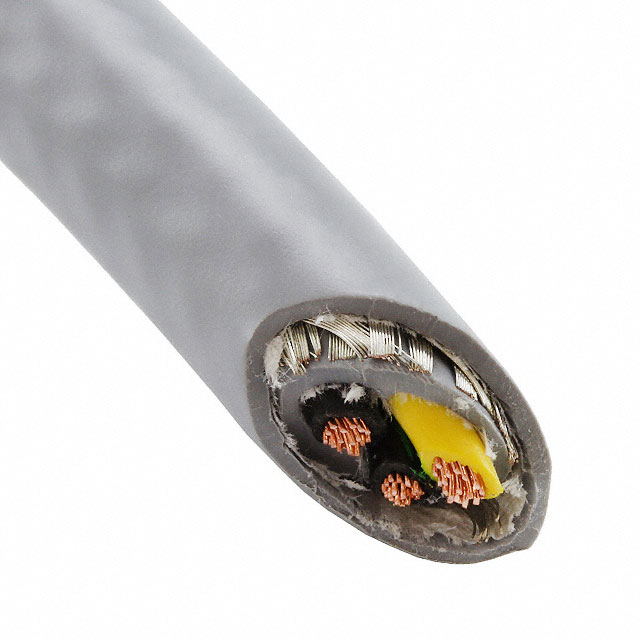

CABLE 3COND 10AWG SLATE SHLD
| Part | Jacket Color | Cable Type | Length [x] | Length [x] | Shield Coverage | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | Multi-Conductor | 30.5 m | 100 ft | 85 % | 600 V | 259 | 34 AWG | Braid | Copper Tinned | 90 °C | -50 °C | Polyphenylene Ether (PPE) | Copper Tinned | 1.346 mm | 0.053 in | 10 AWG | 3 | Polyurethane (PU) | 12.5 mm | 0.492 in |
