68716 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Material Flammability Rating	Mounting Type	Insulation Color	Contact Material	Fastening Type	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Finish - Post

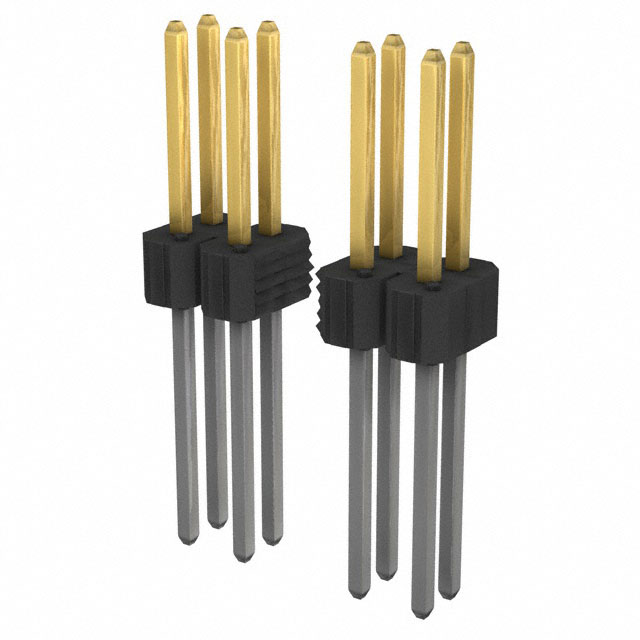

Amphenol ICC (FCI) 68716-172	2	0.318 "	8.08 mm	Male Pin	UL94 V-0	Through Hole	Black	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	Unshrouded	30 Áin	0.76 Ám	72	0.1 in	2.54 mm	Header	0.1 in	2.54 mm	All	Solder	2.54 mm	0.1 in	0.828 in	21.03 mm	Square
Amphenol ICC (FCI) 68716-112HLF	2	0.318 "	8.08 mm	Male Pin	UL94 V-0	Through Hole	Black	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	Unshrouded	30 Áin	0.76 Ám	12	0.1 in	2.54 mm	Header	0.1 in	2.54 mm	All	Solder	2.54 mm	0.1 in	0.828 in	21.03 mm	Square

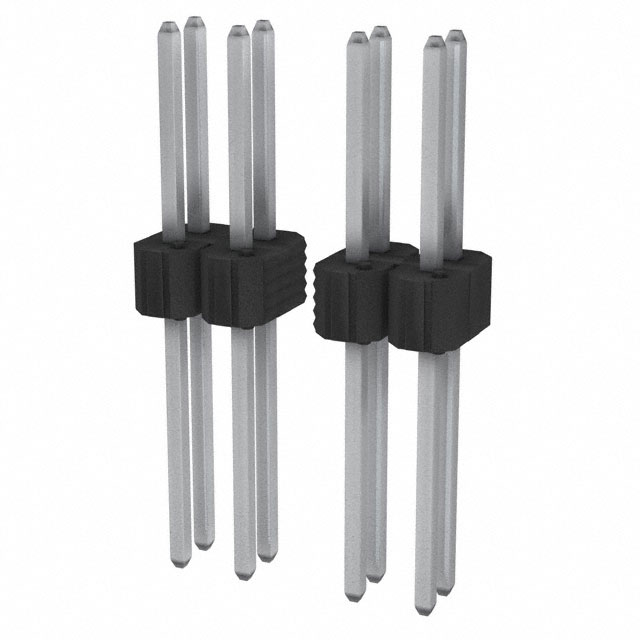

Amphenol ICC (FCI) 68716-472	2	0.318 "	8.08 mm	Male Pin	UL94 V-0	Through Hole	Black	Phosphor Bronze	Push-Pull		Unshrouded	100 çin	2.54 çm	72	0.1 in	2.54 mm	Header	0.1 in	2.54 mm	All	Solder	2.54 mm	0.1 in	0.828 in	21.03 mm	Square
Amphenol ICC (FCI) 68716-472HLF	2	0.318 "	8.08 mm	Male Pin	UL94 V-0	Through Hole	Black	Phosphor Bronze	Push-Pull		Unshrouded	100 çin	2.54 çm	72	0.1 in	2.54 mm	Header	0.1 in	2.54 mm	All	Solder	2.54 mm	0.1 in	0.828 in	21.03 mm	Square	Tin
