5669 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

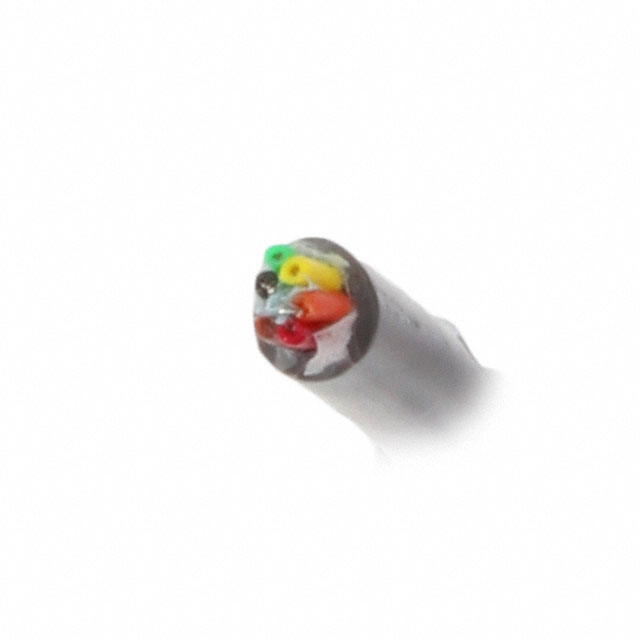

CABLE 6COND 26AWG SLATE 100'
| Part | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length [x] | Length [x] | Conductor Material | Usage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Voltage | Features | Conductor Insulation | Conductor Strand [x] | Conductor Strand [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 6 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | 26 AWG | 100 ft | 30.5 m | Copper Tinned | Communication Control | Multi-Conductor | 0.186 " | 4.72 mm | ISO 10993 UL Style 2464 | 300 VDC | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 34 AWG | 7 | ||
 ALPHA WIRE | 6 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | 26 AWG | Copper Tinned | Communication Control | Multi-Conductor | 0.186 " | 4.72 mm | ISO 10993 UL Style 2464 | 300 VDC | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 34 AWG | 7 | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 6 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | 26 AWG | Copper Tinned | Communication Control | Multi-Conductor | 0.186 " | 4.72 mm | ISO 10993 UL Style 2464 | 300 VDC | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 34 AWG | 7 | 152.4 m | 500 ft |
