V19T16 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

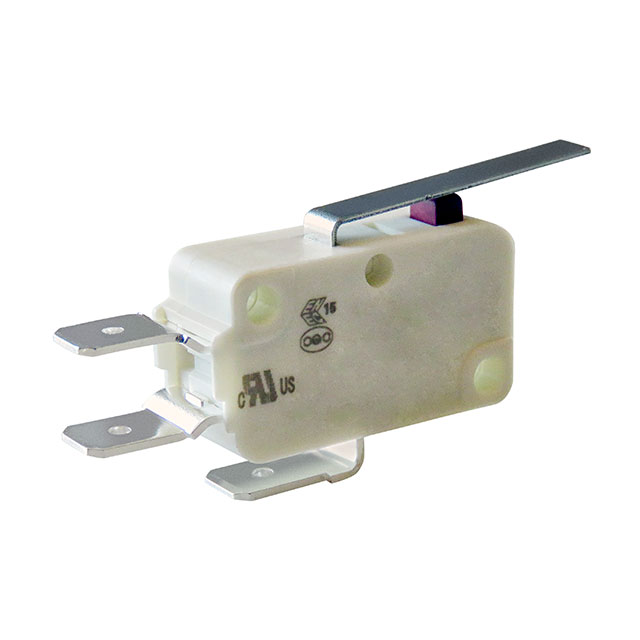

SWITCH SNAP ACTION N.O./N.C. SPDT STRAIGHT LEVER 16A 250VAC 250VDC 74.57VA 0.49N SCREW MOUNT QUICK CONNECT
| Part | Operating Force | Mechanical Life | Switch Function | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Release Force | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Ingress Protection | Actuator Type | Voltage Rating - DC | Differential Travel | Differential Travel | Mounting Type | Operating Position | Operating Position | Voltage Rating - AC | Pretravel | Pretravel | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 50 gf | 1000000 Cycles | On-Mom | 10000 Cycles | -25 °C | 125 °C | Quick Connect | 10 gf | 16 A 600 mA | 0.062 " | 1.6 mm | IP40 | Lever Straight | 125 VDC | 2 mm | 0.08 in | Chassis Mount | 0.598 " | 15.2 mm | 125 V | 4 mm | 0.157 in | SPDT |
 Honeywell Sensing and Productivity Solutions | 100 gf | 1000000 Cycles | On-Mom | 10000 Cycles | -25 °C | 125 °C | Quick Connect | 15 gf | 16 A 600 mA | 0.039 " | 1 mm | IP40 | Round (Pin Plunger) | 125 VDC | 0.4 mm | 0.016 in | Chassis Mount | 0.579 in | 14.7 mm | 125 V | 1.2 mm | 0.047 in | SPST-NC |
 Honeywell Sensing and Productivity Solutions | 400 gf | 1000000 Cycles | On-Mom | 10000 Cycles | -25 °C | 125 °C | PC Pin | 79 gf | 16 A 600 mA | 0.039 " | 1 mm | IP40 | Round (Pin Plunger) | 125 VDC | 0.4 mm | 0.016 in | Chassis Mount | 0.579 in | 14.7 mm | 125 V | 1.2 mm | 0.047 in | SPDT |
 Honeywell Sensing and Productivity Solutions | 125 gf | 1000000 Cycles | Off-Mom | 10000 Cycles | -25 °C | 125 °C | PC Pin | 14 gf | 16 A 600 mA | 0.062 " | 1.6 mm | IP40 | Lever Simulated Roller | 125 VDC | 3.5 mm | 0.138 in | Chassis Mount | 0.738 in | 18.7 mm | 125 V | 4 mm | 0.157 in | SPST-NO |
 Honeywell Sensing and Productivity Solutions | 340 gf | 1000000 Cycles | On-Mom | 10000 Cycles | -25 °C | 125 °C | Quick Connect - 0.250" (6.3mm) | 50 gf | 16 A 600 mA | 0.031 " | 0.79 mm | IP40 | Lever Roller | 125 VDC | Chassis Mount | 0.815 in | 20.7 mm | 125 V | 1.6 mm | 0.063 in | SPDT | ||
 Honeywell Sensing and Productivity Solutions | 100 gf | 1000000 Cycles | On-Mom | 10000 Cycles | -25 °C | 125 °C | Quick Connect | 15 gf | 16 A 600 mA | 0.039 " | 1 mm | IP40 | Round (Pin Plunger) | 125 VDC | 0.4 mm | 0.016 in | Chassis Mount | 0.579 in | 14.7 mm | 125 V | 1.2 mm | 0.047 in | SPDT |
 Honeywell Sensing and Productivity Solutions | 0.25 kgf | 1000000 Cycles | On-Mom | 10000 Cycles | -25 °C | 125 °C | Quick Connect | 25 gf | 16 A 600 mA | 0.062 " | 1.6 mm | IP40 | Lever Roller | 125 VDC | 2.7 mm | 0.107 in | Chassis Mount | 0.815 in | 20.7 mm | 125 V | 4 mm | 0.157 in | SPDT |
