V7803 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 3.3V 1.65W

Part	Efficiency	Voltage - Output 1	Applications	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Power (Watts)	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Approval Agency	Standard Number	Control Features
CUI Inc. V7803-500	90 %	3.3 V	ITE (Commercial)	3-SIP Module	Through Hole	0.3 "	0.45 "	0.4 "	10.2 mm	7.6 mm	11.4 mm	1	1.65 W	Linear Regulator Replacement	OTP SCP	85 °C	-40 C	500 mA	28 V	4.75 V

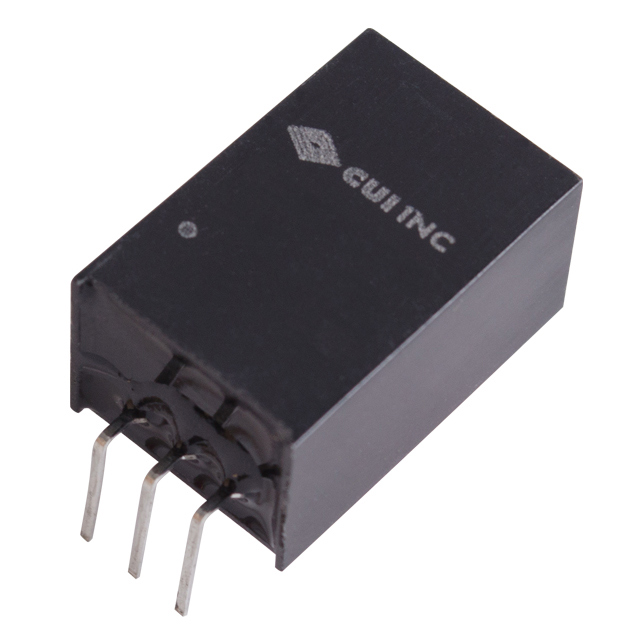

CUI Inc. V7803-2000R	87 %	3.3 V	ITE (Commercial)	3-SIP Module	Right Angle Through Hole	0.45 in	0.69 in	0.35 in	9 mm	11.5 mm	17.5 mm	1	6.6 W	Linear Regulator Replacement	OTP SCP	85 °C	-40 C	2 A	18 V	4.75 V	CB Scheme EN IEC	55024 55032 Class A 60950-1
CUI Inc. V7803-500-SMT-TR	90 %	3.3 V	ITE (Commercial)	10-SMD Module 6 Leads	Surface Mount	0.33 "	0.6 "	0.29 in	7.3 mm	8.3 mm	15.2 mm	1	1.65 W	Linear Regulator Replacement	OTP Remote On/Off SCP	85 °C	-40 C	500 mA	28 V	4.5 V			Active High Enable

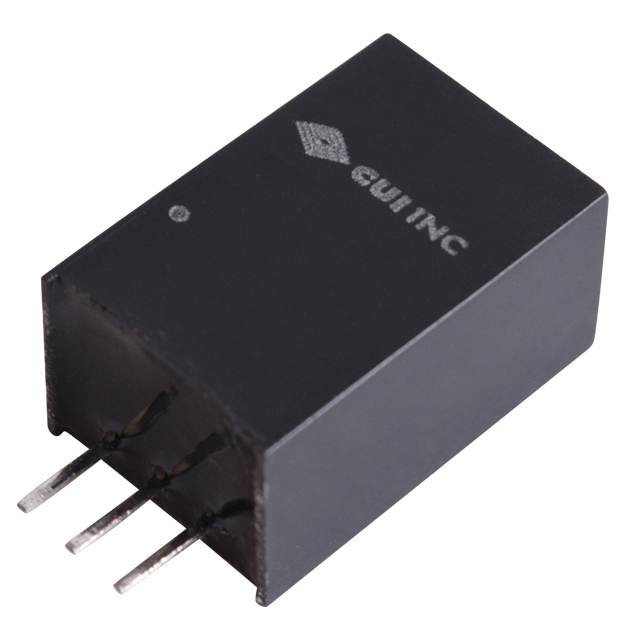

CUI Inc. V7803-2000	87 %	3.3 V	ITE (Commercial)	3-SIP Module	Through Hole	0.35 in	0.45 "	0.69 in	17.5 mm	9 mm	11.5 mm	1	6.6 W	Linear Regulator Replacement	OTP SCP	85 °C	-40 C	2 A	18 V	4.75 V	CB Scheme EN IEC	55024 55032 Class A 60950-1
CUI Inc. V7803-1500	91 %	3.3 V	ITE (Commercial)	3-SIP Module	Through Hole	0.35 in	0.45 "	0.69 in	17.5 mm	9 mm	11.5 mm	1	4.95 W	Linear Regulator Replacement	OTP SCP	85 °C	-40 C	1.5 A	18 V	4.75 V
CUI Inc. V7803-1000	90 %	3.3 V	ITE (Commercial)	3-SIP Module	Through Hole	0.35 in	0.45 "	0.69 in	17.5 mm	9 mm	11.5 mm	1	3.3 W	Linear Regulator Replacement	OTP SCP	85 °C	-40 C	1 A	28 V	4.75 V
CUI Inc. V7803-500-SMT	90 %	3.3 V	ITE (Commercial)	10-SMD Module 6 Leads	Surface Mount	0.33 "	0.6 "	0.29 in	7.3 mm	8.3 mm	15.2 mm	1	1.65 W	Linear Regulator Replacement	OTP Remote On/Off SCP	85 °C	-40 C	500 mA	28 V	4.5 V			Active High Enable
CUI Inc. V7803W-500R		3.3 V	ITE (Commercial)	3-SIP Module	Right Angle Through Hole	0.45 in	0.69 in	0.35 in	9 mm	11.5 mm	17.5 mm	1	1.65 W	Linear Regulator Replacement	OTP SCP	85 °C	-40 C	500 mA	72 V	9 V

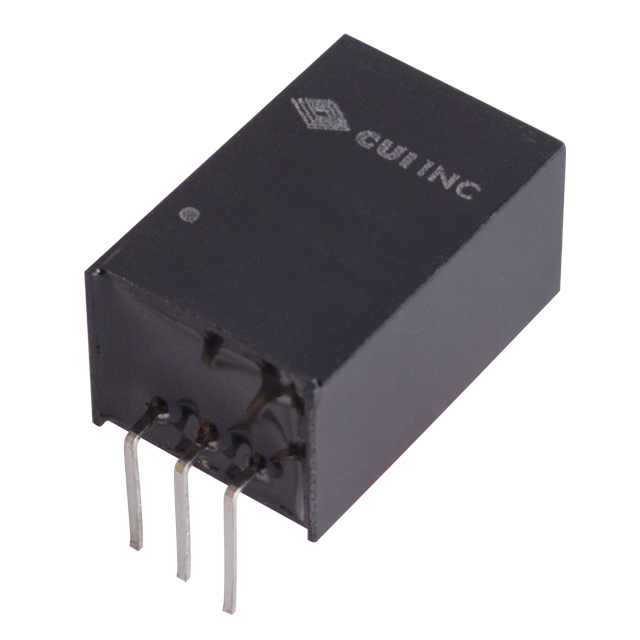

CUI Inc. V7803-1000R	90 %	3.3 V	ITE (Commercial)	3-SIP Module	Right Angle Through Hole	0.45 in	0.69 in	0.35 in	9 mm	11.5 mm	17.5 mm	1	3.3 W	Linear Regulator Replacement	OTP SCP	85 °C	-40 C	1 A	28 V	4.75 V
CUI Inc. V7803-1000-SMT-TR	84 %	3.3 V	ITE (Commercial)	10-SMD Module 6 Leads	Surface Mount	0.33 "	0.6 "	0.29 in	7.3 mm	8.5 mm	15.2 mm	1	3 W	Linear Regulator Replacement	OTP Remote On/Off SCP	85 °C	-40 C	1 A	18 V	5 V			Active High Enable
