087438 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD R/A 7POS 1.5MM

Part	Insulation Color	Mounting Type	Connector Type	Number of Rows	Contact Shape	Contact Type	Material Flammability Rating	Contact Finish - Mating	Termination	Contact Material	Style	Applications	Number of Positions	Insulation Height	Insulation Height	Shrouding	Insulation Material	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post

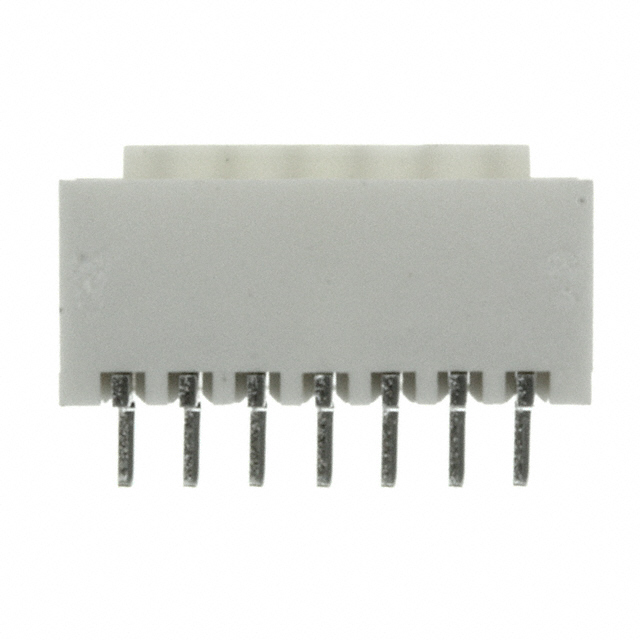

Molex 0874380733	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0	Tin-Lead	Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical	7	4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon 4/6 Polyamide (PA46)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin
Molex 0874380462	Black	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0		Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical	4	4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin	Tin
Molex 0874380443	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0		Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical	4	4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC			Tin	100 in	2.54 m
Molex 0874380363	Black	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0		Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical		4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.106 in	2.7 mm	Push-Pull	All				2.54 çm	100 çin	Tin			2.54 µm	100 µin
Molex 0874380433	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0	Tin-Lead	Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical	4	4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon 4/6 Polyamide (PA46)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin
Molex 0874380342	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0		Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical		4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin	Tin
Molex 0874380333	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0	Tin-Lead	Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical		4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon 4/6 Polyamide (PA46)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin
Molex 0874381042	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0		Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical	10	4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin	Tin
Molex 0874380242	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0		Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical	2	4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin	Tin
Molex 0874381433	Beige	Surface Mount Right Angle	Header	1	Square	Male Pin	UL94 V-0	Tin-Lead	Solder	Brass Alloy	Board to Cable/Wire	General Purpose Medical	14	4.45 mm	0.175 in	Shrouded - 4 Wall	Glass Filled Nylon 4/6 Polyamide (PA46)	0.106 in	2.7 mm	Push-Pull	All	105 ░C	-55 °C	250 VDC	2.54 çm	100 çin
