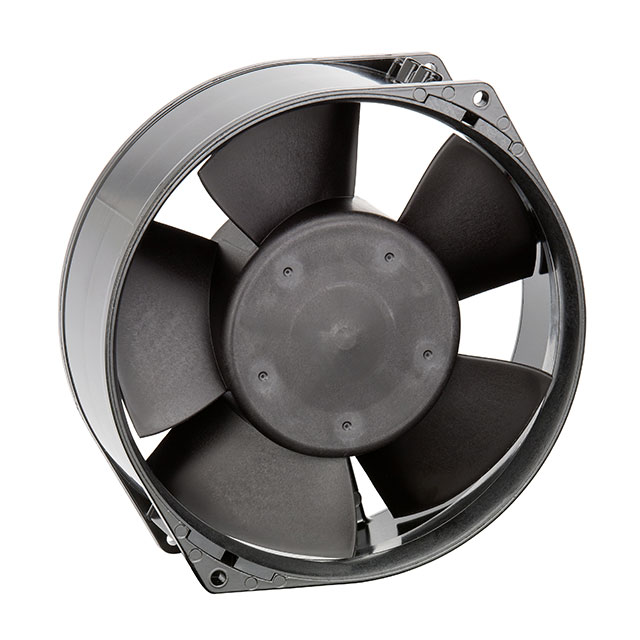

7200N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FANS DC TUBEAXIAL FAN, 150X55MM ROUND, 24VDC, 212CFM, BALL BEARING, 3 LEAD WIRES
| Part | Material - Frame | Air Flow | Air Flow | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Lifetime @ Temp. | Fan Type | Noise | Approval Agency | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Termination | Bearing Type | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Width | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | 5.94 m³/min | 212 CFM | 0.5 A | 12 VDC | 30 V | Polyamide (PA) Nylon Fiberglass Reinforced | Varies Based on Temperature | Tubeaxial | 53 dB | CE CSA EAC UL VDE | 12 W | -25 °C | 162 °F | -25 °C | 72 °C | 159.9 Pa | 0.642 in H2O | 3 Wire Leads | Ball | Round | 150 mm | 24 VDC | 55 mm | ||
 ebm-papst Inc. | ||||||||||||||||||||||||||
 ebm-papst Inc. | 5.94 m³/min | 212 CFM | Tubeaxial | 53 dB | CE CSA UL VDE | 12 W | -25 °C | 162 °F | -25 °C | 72 °C | 2 Wire Leads | Ball | Round | 150 mm | 12 VDC | 55 mm | 1.6 lbs | 725.7 g | ||||||||
ebm-papst Inc. | Aluminum | 5.94 m³/min | 212 CFM | 0.5 A | 12 VDC | 30 V | Polyamide (PA) Nylon Fiberglass Reinforced | Varies Based on Temperature | Tubeaxial | 53 dB | CE CSA EAC UL VDE | 12 W | -25 °C | 162 °F | -25 °C | 72 °C | 159.9 Pa | 0.642 in H2O | 3 Wire Leads | Ball | Round | 150 mm | 24 VDC | 55 mm |
