9804 Series
Manufacturer: Belden Inc.
Beta
⌘K

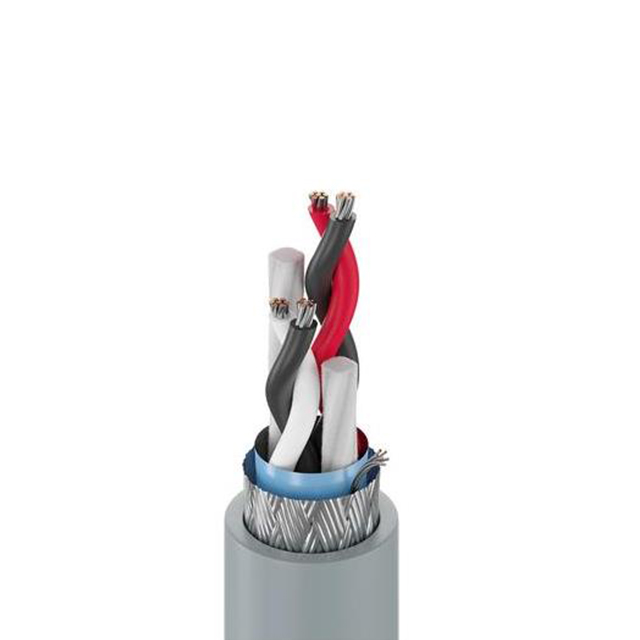

MULTI-PAIR 4CON 28AWG CHROM
| Part | Shield Coverage | Shield Material | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Ratings | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Material | Features | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 90 % 100 % | Aluminum Copper Tinned | Copper Tinned | 0.042 in | 1.067 mm | Braid Foil | UL Style 2960 | Multi-Pair | -20 ░C | 60 °C | 152.4 m | 500 ft | Polypropylene (PP) | 5.44 mm | 0.214 in | Computer | 4 | 7 | 36 AWG | Chrome | Poly-Vinyl Chloride (PVC) | Drain Wire | 28 AWG |
Belden Inc. | 90 % 100 % | Aluminum Copper Tinned | Copper Tinned | 0.042 in | 1.067 mm | Braid Foil | UL Style 2960 | Multi-Pair | -20 ░C | 60 °C | 304.8 m | 1000 ft | Polypropylene (PP) | 5.44 mm | 0.214 in | Computer | 4 | 7 | 36 AWG | Chrome | Poly-Vinyl Chloride (PVC) | Drain Wire | 28 AWG |
