SM72480 Series

1.6V, LLP-6 Factory Preset Temperature Switch and Temperature Sensor

Catalog

1.6V, LLP-6 Factory Preset Temperature Switch and Temperature Sensor

Part	Switching Temperature	Mounting Type	Trip Temperature Threshold	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply	Output Function	Output Function	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Accuracy	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Utilized IC / Part	Board Type	Outputs and Type	Outputs and Type	Current - Output	Supplied Contents	Main Purpose	Voltage - Input (Min) [Min]	Output Configuration	Voltage - Output (Max) [Max]	Number of Outputs	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]	Frequency - Switching [Max]	Function	Voltage - Input (Max) [Max]	Package / Case	Topology
Texas Instruments SM72480SDE-125/NOPB	125 °C	Surface Mount	Hot	Open Drain Push-Pull	1.6 V	5.5 V	8 µA	OverTemp	/OverTemp	7 mA	150 °C	-50 °C	6-WSON (2.2x2.5)	2.2 °C

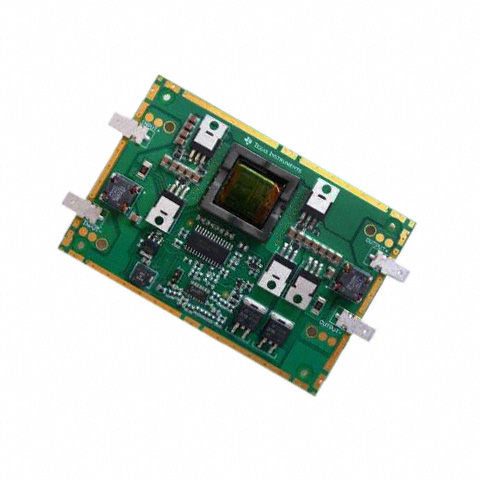

Texas Instruments SM72445EVM/NOPB															15 V	40 V	Buck-Boost	SM72445	Fully Populated	Non-Isolated	1	11 A	Board(s)	MPPT Solar Special Purpose
Texas Instruments SM72480SDE-120/NOPB	120 °C	Surface Mount	Hot	Open Drain Push-Pull	1.6 V	5.5 V	8 µA	OverTemp	/OverTemp	7 mA	150 °C	-50 °C	6-WSON (2.2x2.5)	2.2 °C
Texas Instruments SM72480SD-105/NOPB	221 °F	Surface Mount	Hot	Open Drain Push-Pull	1.6 V	5.5 V	8 µA	OverTemp	/OverTemp	7 mA	150 °C	-50 °C	6-WSON (2.2x2.5)	2.2 °C
Texas Instruments SM72480SDX-125/NOPB	125 °C	Surface Mount	Hot	Open Drain Push-Pull	1.6 V	5.5 V	8 µA	OverTemp	/OverTemp	7 mA	150 °C	-50 °C	6-WSON (2.2x2.5)	2.2 °C
Texas Instruments SM72480SD-125/NOPB	125 °C	Surface Mount	Hot	Open Drain Push-Pull	1.6 V	5.5 V	8 µA	OverTemp	/OverTemp	7 mA	150 °C	-50 °C	6-WSON (2.2x2.5)	2.2 °C
Texas Instruments SM72480SD-120/NOPB	120 °C	Surface Mount	Hot	Open Drain Push-Pull	1.6 V	5.5 V	8 µA	OverTemp	/OverTemp	7 mA	150 °C	-50 °C	6-WSON (2.2x2.5)	2.2 °C
Texas Instruments SM72485/NOPB		Surface Mount		Adjustable							125 ¯C	-40 °C	8-WSON (4x4)									150 mA			6 V	Positive	85 V	1	2.5 V	50 kHz	1.1 MHz	Step-Down	95 V	8-WDFN Exposed Pad	Buck

Catalog

1.6V, LLP-6 Factory Preset Temperature Switch and Temperature Sensor

Key Features

• Renewable Energy GradeLow 1.6V OperationLatching Function: Device Can Latch the Over Temperature ConditionPush-pull and Open-Drain Temperature Switch OutputsVery Linear Analog VTEMPTemperature Sensor OutputVTEMPOutput Short-circuit Protected2.2 mm by 2.5 mm (typ) WSON-6 PackageExcellent Power Supply Noise RejectionKey SpecificationsSupply Voltage 1.6V to 5.5VSupply Current 8 μA (typ)Accuracy, Trip Point Temperature 0°C to 150°C ±2.2°CAccuracy, VTEMP 0°C to 150°C ±2.3°CVTEMP Output Drive ±100 μAOperating Temperature −50°C to 150°CHysteresis Temperature 4.5°C to 5.5°CAll trademarks are the property of their respective owners.Renewable Energy GradeLow 1.6V OperationLatching Function: Device Can Latch the Over Temperature ConditionPush-pull and Open-Drain Temperature Switch OutputsVery Linear Analog VTEMPTemperature Sensor OutputVTEMPOutput Short-circuit Protected2.2 mm by 2.5 mm (typ) WSON-6 PackageExcellent Power Supply Noise RejectionKey SpecificationsSupply Voltage 1.6V to 5.5VSupply Current 8 μA (typ)Accuracy, Trip Point Temperature 0°C to 150°C ±2.2°CAccuracy, VTEMP 0°C to 150°C ±2.3°CVTEMP Output Drive ±100 μAOperating Temperature −50°C to 150°CHysteresis Temperature 4.5°C to 5.5°CAll trademarks are the property of their respective owners.

Description

The SM72480 is a low-voltage, precision, dual-output, low-power temperature switch and temperature sensor. The temperature trip point (TTRIP) is set at the factory to be 120°C. Built-in temperature hysteresis (THYST) keeps the output stable in an environment of temperature instability. In normal operation the SM72480 temperature switch outputs assert when the die temperature exceeds TTRIP. The temperature switch outputs will reset when the temperature falls below a temperature equal to (TTRIP− THYST). The OVERTEMP digital output, is active-high with a push-pull structure, while theOVERTEMPdigital output, is active-low with an open-drain structure. The analog output, VTEMP, delivers an analog output voltage with Negative Temperature Coefficient — NTC. Driving the TRIP TEST input high: (1) causes the digital outputs to be asserted for in-situ verification and, (2) causes the threshold voltage to appear at the VTEMPoutput pin, which could be used to verify the temperature trip point. The SM72480's low minimum supply voltage makes it ideal for 1.8 volt system designs. Its wide operating range, low supply current , and excellent accuracy provide a temperature switch solution for a wide range of commercial and industrial applications. The SM72480 is a low-voltage, precision, dual-output, low-power temperature switch and temperature sensor. The temperature trip point (TTRIP) is set at the factory to be 120°C. Built-in temperature hysteresis (THYST) keeps the output stable in an environment of temperature instability. In normal operation the SM72480 temperature switch outputs assert when the die temperature exceeds TTRIP. The temperature switch outputs will reset when the temperature falls below a temperature equal to (TTRIP− THYST). The OVERTEMP digital output, is active-high with a push-pull structure, while theOVERTEMPdigital output, is active-low with an open-drain structure. The analog output, VTEMP, delivers an analog output voltage with Negative Temperature Coefficient — NTC. Driving the TRIP TEST input high: (1) causes the digital outputs to be asserted for in-situ verification and, (2) causes the threshold voltage to appear at the VTEMPoutput pin, which could be used to verify the temperature trip point. The SM72480's low minimum supply voltage makes it ideal for 1.8 volt system designs. Its wide operating range, low supply current , and excellent accuracy provide a temperature switch solution for a wide range of commercial and industrial applications.
