3520 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

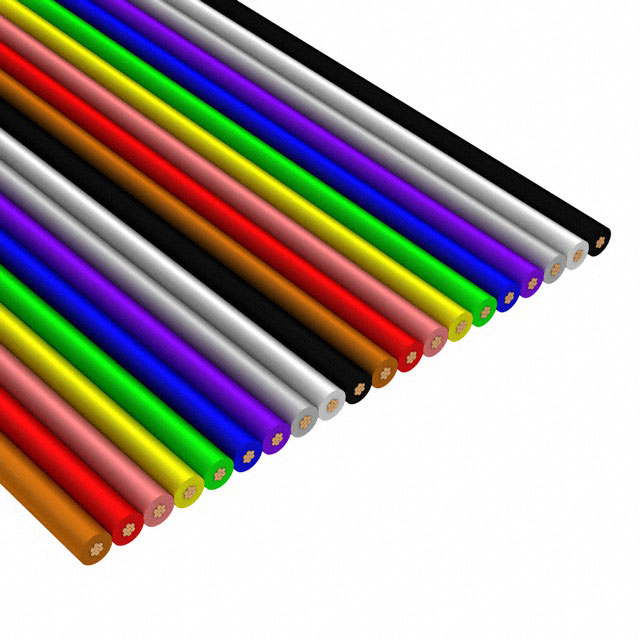

CBL RIBN 20COND 0.062 MULTI 100'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Material | Cable Type | Ribbon Width | Ribbon Width | Number of Conductors | Pitch [x] | Pitch [x] | Ribbon Thickness | Ribbon Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Length [x] | Length [x] | Ratings | Shielding | Jacket Color | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 30 AWG | 7 | 22 AWG | Copper Tinned | Flat Cable | 31.5 mm | 1.24 in | 20 | 1.57 mm | 0.062 in | 1.65 mm | 0.065 in | -20 C | 105 ░C | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m | UL Style 2555 | Unshielded | Multiple | MIL-DTL-16878/2 Type C |
