G52L0C-P Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP RECEPT, STY 2, SZ
| Part | Applications | Voltage Rating | Connector Type | Fastening Type | Shell Material | Primary Material | Features | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert [custom] | Orientation | Contact Finish - Mating | Shell Finish | Color | Shielding | Contact Material | Ingress Protection | Mounting Feature | Insert Material | Mounting Type | Current Rating (Amps) | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

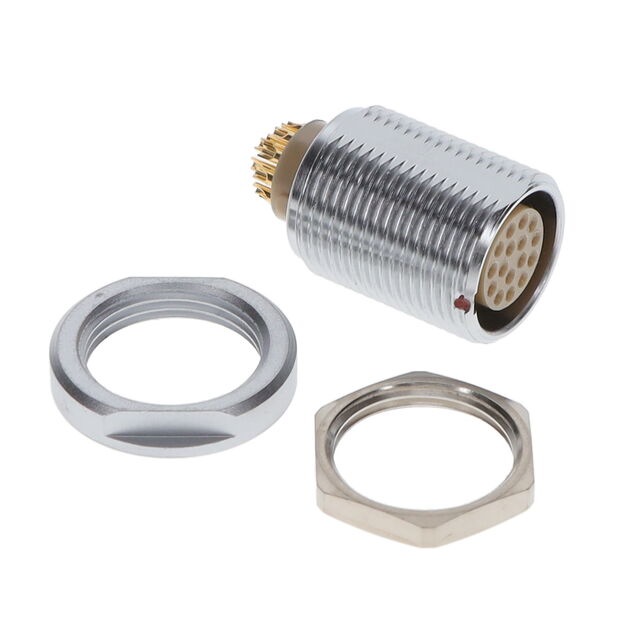

Industrial Medical Military Testing Equipment & Measurement | 300 VDC | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 16 | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount | 7.5 A | ||
Industrial Medical Military Testing Equipment & Measurement | 500 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 6 | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount Through Hole | 12 Amps | Solder | |

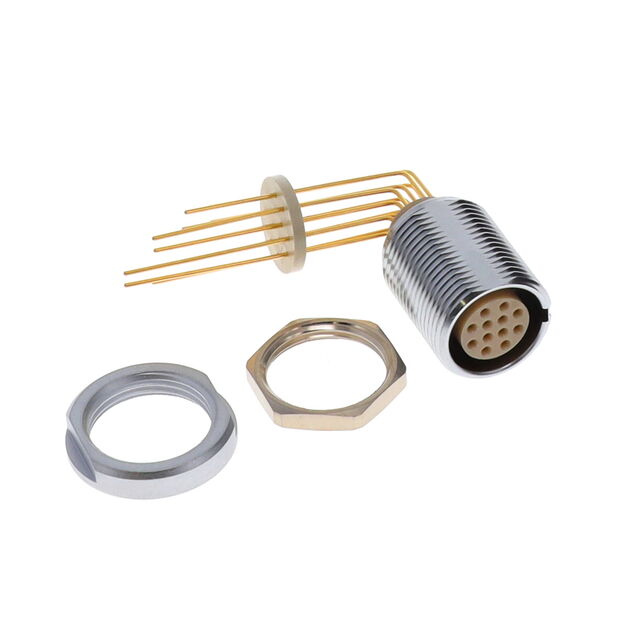

Industrial Medical Military Testing Equipment & Measurement | 450 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 12 | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount Through Hole | 6 A | Solder | |
Industrial Medical Military Testing Equipment & Measurement | 500 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 8 | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount | 7.5 A | ||
Industrial Medical Military Testing Equipment & Measurement | 700 VDC | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 2 | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount | 18 A | ||
Industrial Medical Military Testing Equipment & Measurement | 366 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 16 | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount Through Hole | 6 A | Solder | |

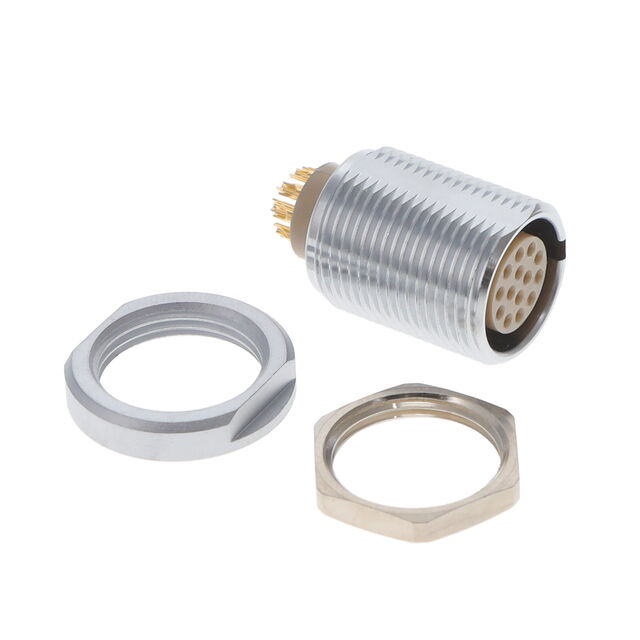

Industrial Medical Military Testing Equipment & Measurement | 366 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 14 | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount | 7.5 A | ||
Industrial Medical Military Testing Equipment & Measurement | 650 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount | 21 A | Crimp | ||
Industrial Medical Military Testing Equipment & Measurement | 800 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount | 16 A | |||
Industrial Medical Military Testing Equipment & Measurement | 800 V | Receptacle Female Sockets | Push-Pull | Brass | Metal | Ground | 120 °C | -40 C | 2 | 0 | Gold | Chrome over Nickel | Silver | Unshielded | Brass | IP50 - Dust Protected | Bulkhead - Front or Rear Side Nut | Polyetheretherketone (PEEK) | Panel Mount Through Hole | 16 A | Solder |
