1160-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

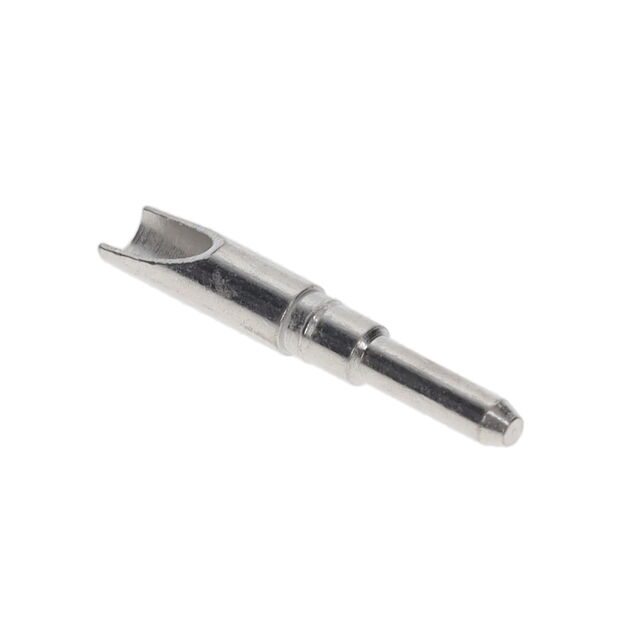

CONN PC PIN CIRC
| Part | Mounting Type | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Terminal Type | Insulation | Length - Overall [x] | Length - Overall [x] | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | Press-Fit | 2.03 mm | 0.08 in | Brass Alloy | 200 Áin | 5.08 Ám | Tin-Lead | PC Pin | Non-Insulated | 0.59 in | 14.99 mm | Wire | 2.29 mm | 0.09 in | 0.315 in | 8 mm | 1.52 mm | 0.06 in |
