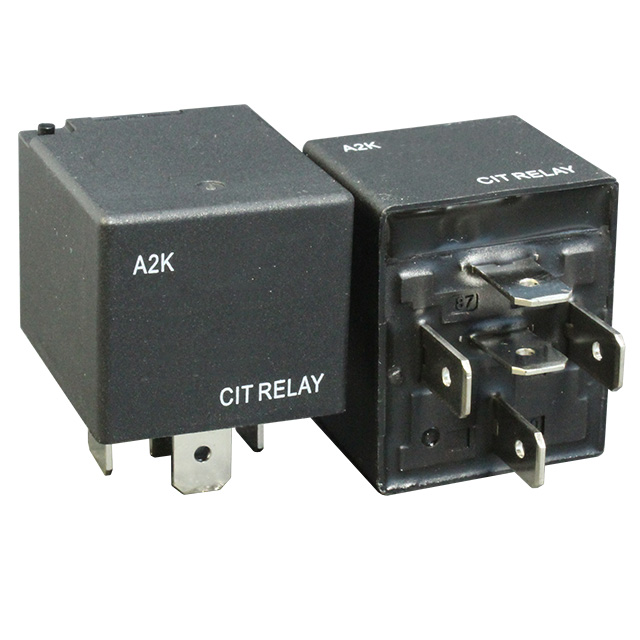

A2K1 Series

Catalog

RELAY AUTOMOTIVE SPST 120A 24V

Part	Coil Power	Coil Resistance	Contact Material	Features	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Coil Type	Operate Time	Must Release Voltage	Release Time	Coil Current	Coil Voltage	Switching Voltage [Max]	Contact Form	Must Operate Voltage
CIT Relay and Switch A2K1ACQ24VDC1.6	1.6 W	360 Ohms	Silver Tin Oxide (AgSnO)	Magnetic Blowout	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	125 °C	-40 C	60 A	Non Latching	15 ms	2.4 VDC	15 ms	66.7 mA	24 VDC	110 VDC	SPST-NO (1 Form A)
CIT Relay and Switch A2K1CSP24VDC1.6D	1.6 W	360 Ohms	Silver Tin Oxide (AgSnO)		PC Pin	Through Hole	125 °C	-40 C	60 A	Non Latching	15 ms	2.4 VDC	15 ms	66.7 mA	24 VDC	110 VDC	SPDT (1 Form C)
CIT Relay and Switch A2K1CSQ12VDC1.6	1.6 W	90 Ohms	Silver Tin Oxide (AgSnO)	Magnetic Blowout Sealed - Fully	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	125 °C	-40 C	60 A	Non Latching	15 ms	1.2 VDC	15 ms	133.3 mA	12 VDC	110 VDC	SPDT (1 Form C)	7.8 VDC
CIT Relay and Switch A2K1CSQ24VDC1.6	1.6 W	360 Ohms	Silver Tin Oxide (AgSnO)	Magnetic Blowout Sealed - Fully	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	125 °C	-40 C	60 A	Non Latching	15 ms	2.4 VDC	15 ms	66.7 mA	24 VDC	110 VDC	SPDT (1 Form C)
CIT Relay and Switch A2K1CCQ24VDC1.6D	1.6 W	360 Ohms	Silver Tin Oxide (AgSnO)	Diode Magnetic Blowout	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	125 °C	-40 C	60 A	Non Latching	15 ms	2.4 VDC	15 ms	66.7 mA	24 VDC	110 VDC	SPDT (1 Form C)
CIT Relay and Switch A2K1ASQ12VDC1.6D	1.6 W	90 Ohms	Silver Tin Oxide (AgSnO)		Plug In Quick Connect - 0.250" (6.3mm)	Socketable	125 °C	-40 C	60 A	Non Latching	15 ms	1.2 VDC	15 ms	133.3 mA	12 VDC	110 VDC	SPST-NO (1 Form A)	7.8 VDC
CIT Relay and Switch A2K1ASP24VDC1.6R	1.6 W	360 Ohms	Silver Tin Oxide (AgSnO)	Magnetic Blowout Resistor Sealed - Fully	PC Pin	Through Hole	125 °C	-40 C	60 A	Non Latching	15 ms	2.4 VDC	15 ms	66.7 mA	24 VDC	110 VDC	SPST-NO (1 Form A)
CIT Relay and Switch A2K1ASQ24VDC1.6R	1.6 W	360 Ohms	Silver Tin Oxide (AgSnO)	Magnetic Blowout Resistor Sealed - Fully	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	125 °C	-40 C	60 A	Non Latching	15 ms	2.4 VDC	15 ms	66.7 mA	24 VDC	110 VDC	SPST-NO (1 Form A)
CIT Relay and Switch A2K1ASP12VDC1.6	1.6 W	90 Ohms	Silver Tin Oxide (AgSnO)	Magnetic Blowout Sealed - Fully	PC Pin	Through Hole	125 °C	-40 C	60 A	Non Latching	15 ms	1.2 VDC	15 ms	133.3 mA	12 VDC	110 VDC	SPST-NO (1 Form A)	7.8 VDC
CIT Relay and Switch A2K1ASP24VDC1.6D	1.6 W	360 Ohms	Silver Tin Oxide (AgSnO)		PC Pin	Through Hole	125 °C	-40 C	60 A	Non Latching	15 ms	2.4 VDC	15 ms	66.7 mA	24 VDC	110 VDC	SPST-NO (1 Form A)
