DPT4 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
4MM/2 CONNECTION/GREEN/PUSH IN
| Part | Stripping Length [Min] | Stripping Length [Max] | Material - Insulation | Material Flammability Rating | Voltage - UL | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Termination Style | Current - UL | Voltage - IEC | Terminal - Width [y] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Current - IEC | Type | Number of Positions | Number of Levels | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 8 mm | 12 mm | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 600 V | 4 mm² | 0.2 mm² | Push In | 30 A | 800 V | 6.2 mm | 24 AWG | 10 AWG | 32 A | Feed Through | 2 | 1 | Green |

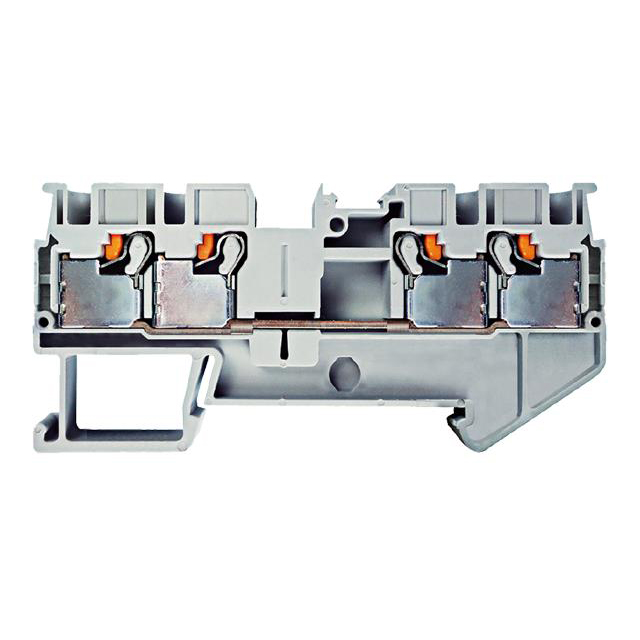

 MEAN WELL USA Inc. | 8 mm | 12 mm | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 600 V | 4 mm² | 0.2 mm² | Push In | 30 A | 800 V | 6.2 mm | 24 AWG | 10 AWG | 32 A | Feed Through | 4 | 1 | Gray |
