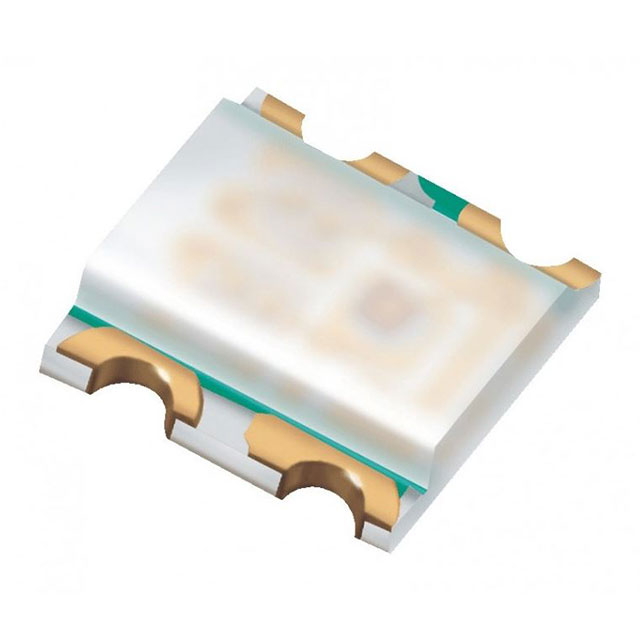

EAST1616 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED RGB CLEAR 6SMD

Part	Lens Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Mounting Type	Supplier Device Package	Wavelength - Peak	Configuration	Package / Case	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Viewing Angle	Current - Test	Lens Size [y]	Lens Size [x]	Wavelength - Dominant	Color	Lens Style	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Current - Test	Millicandela Rating [custom]
Everlight Electronics Co Ltd EAST1616RGBA4	Colorless	100 mcd	180 mcd	50 mcd	Clear	Surface Mount	6-SMD	468 nm 518 nm 632 nm	Independent	0606 (1616 Metric)	0.45 mm	1.6 mm	1.6 mm	2.05 V	3.25 V	3.25 V	120 °	20mA Blue 20mA Green 20mA Red	1.1 mm	1.6 mm	470 nm 525 nm 624 nm	Blue Green Red	Rectangle with Flat Top
Everlight Electronics Co Ltd EAST1616RGBB4	Colorless				Clear	Surface Mount	4-SMD	468 nm 518 nm 632 nm	Common Anode	0606 (1616 Metric)	0.45 mm	1.6 mm	1.6 mm				120 °		1.1 mm	1.6 mm		Blue Green Red	Rectangle with Flat Top	5 mA	5 mA	5 mA	1.8 V 2.8 V 2.8 V
Everlight Electronics Co Ltd EAST1616RGBA3	Colorless				Clear	Surface Mount	4-SMD	468 nm 518 nm 632 nm	Common Anode	0606 (1616 Metric)	0.45 mm	1.6 mm	1.6 mm				120 °		1.1 mm	1.6 mm		Blue Green Red	Rectangle with Flat Top	5 mA	5 mA	5 mA	1.95 V 2.8 V 2.8 V
Everlight Electronics Co Ltd EAST1616RGBA2	Colorless				Clear	Surface Mount	4-SMD	468 nm 518 nm 632 nm	Common Anode	0606 (1616 Metric)	0.45 mm	1.6 mm	1.6 mm	2.05 V	3.25 V	3.25 V	120 °	20mA Blue 20mA Green 20mA Red	1.1 mm	1.6 mm		Blue Green Red	Rectangle with Flat Top
Everlight Electronics Co Ltd EAST1616RGBB2	White				Diffused	Surface Mount	4-SMD	468 nm 518 nm 632 nm	Common Anode	0606 (1616 Metric)	0.45 mm	1.6 mm	1.6 mm				120 °		1.1 mm	1.6 mm		Blue Green Red	Rectangle with Flat Top	5 mA	5 mA	5 mA	1.9 V 2.8 V 2.8 V
Everlight Electronics Co Ltd EAST1616RGBA0	Colorless				Clear	Surface Mount	4-SMD	468 nm 518 nm 632 nm	Common Anode	0606 (1616 Metric)	0.5 mm	1.6 mm	1.6 mm				120 °	20mA Blue 20mA Green 20mA Red	1.6 mm	1 mm		Blue Green Red	Rectangle with Flat Top				2 V 3.3 V 3.3 V	70 mcd 126 mcd 281 mcd	620 nm	470 nm	523 nm
Everlight Electronics Co Ltd EAST1616RGYA0	Colorless	126 mcd	198.5 mcd		Clear	Surface Mount	4-SMD	518 nm 591 nm 632 nm	Common Anode	0606 (1616 Metric)	0.45 mm	1.6 mm	1.6 mm				120 °		1.1 mm	1.6 mm	525 nm 591 nm 625 nm	Green Red Yellow	Rectangle with Flat Top				2.05 V 2.05 V 3.2 V					5 mA	126 mcd
