TPS563 Series
Manufacturer: Texas Instruments
Beta
⌘K

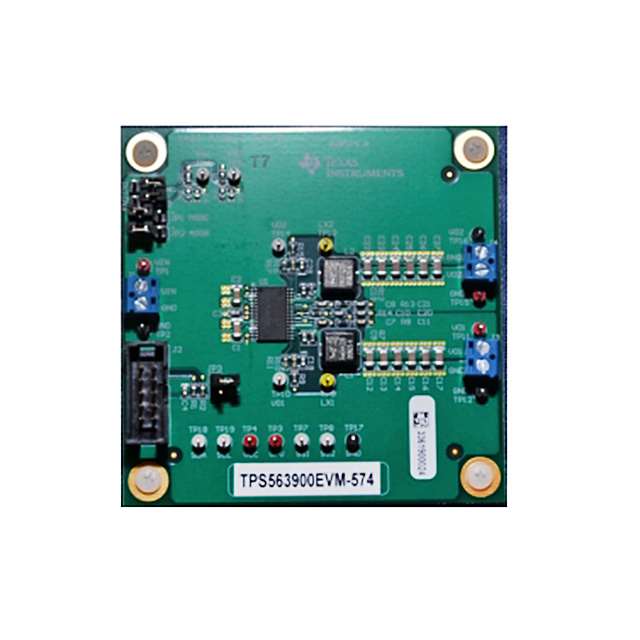

TPS563900 DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 1V/1.1V OUTPUT EVALUATION BOARD
| Part | Outputs and Type | Outputs and Type | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Supplied Contents | Current - Output | Utilized IC / Part | Frequency - Switching | Regulator Topology | Main Purpose | Voltage - Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 2 | Non-Isolated | 1 V 1.1 V | 18 V | 4.5 V | Fully Populated | Board(s) | 3.5 A | TPS563900 | 500 kHz | Buck | DC/DC Step Down | |
Texas Instruments | 2 | Non-Isolated | 1.8 V 3.3 V | Fully Populated | Board(s) | 4 A 500 mA | TPS56300 | 300 kHz | Buck | DC/DC Step Down with LDO | 5 VDC |
