0851-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

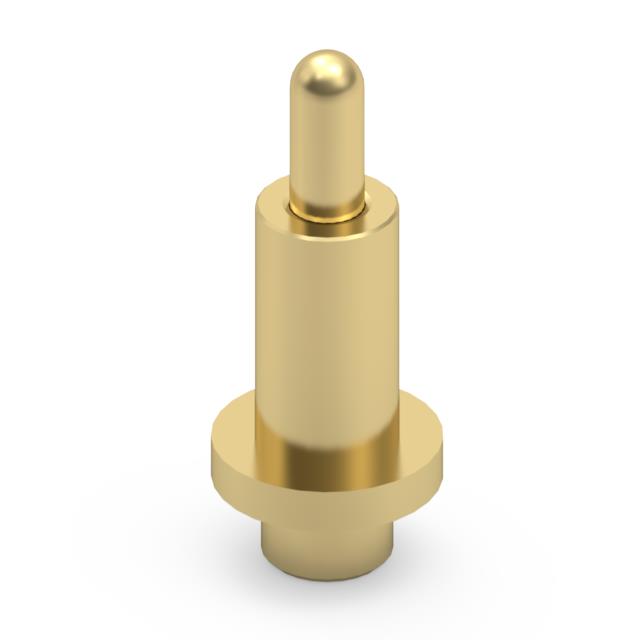

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Operating Force - Initial | Operating Force - Mid Compression | Mating Cycles | Minimum Working Height | Minimum Working Height | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Maximum Working Height [Max] | Maximum Working Height [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 25 gf | 120 gf | 1000000 | 0.228 in | 5.79 mm | 9.6 A | 0.273 in | 6.94 mm | Brass Alloy | 1.27 mm | 0.05 in | Through Hole | Gold | 20 µin | 0.51 µm | 0.318 in | 8.08 mm |
