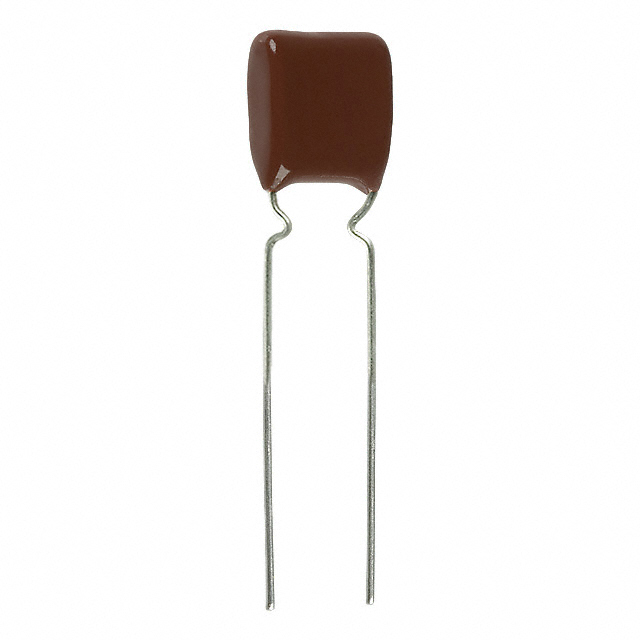

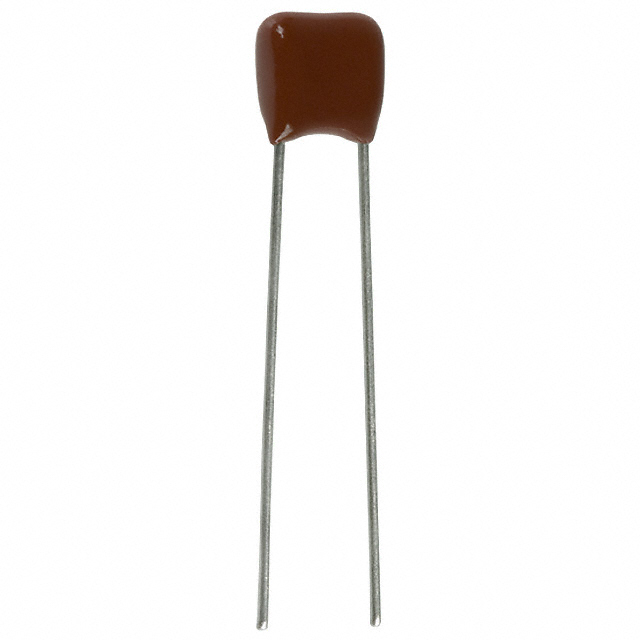

ECQ-B1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 3300PF 5% 50VDC RADIAL

Part	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Voltage Rating - DC	Capacitance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Termination	Dielectric Material	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

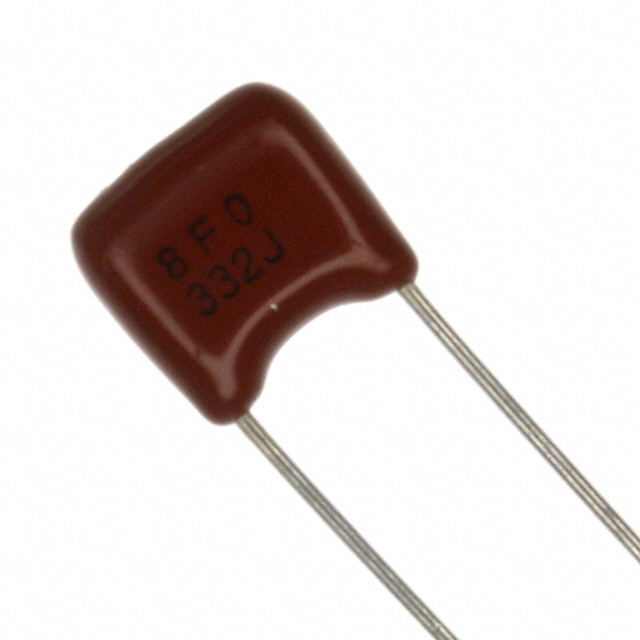

Panasonic Industrial Automation Sales ECQ-B1H332JF	5 %	7 mm	0.276 "	5 mm	0.197 in	50 VDC	3300 pF	Through Hole	0.118 in	0.276 "	7 mm	3 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose
Panasonic Industrial Automation Sales ECQ-B1H184JF	5 %	11.5 mm	0.453 "	7.5 mm	0.295 in	50 VDC	0.18 µF	Through Hole	0.217 in	0.433 in	11 mm		PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose	5.5 mm
Panasonic Industrial Automation Sales ECQ-B1H331KF3	10 %	7 mm	0.276 "	5 mm	0.197 in	50 VDC	330 pF	Through Hole	0.118 in	0.276 "	7 mm	3 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose
Panasonic Industrial Automation Sales ECQ-B1H563JF	5 %			5 mm	0.197 in	50 VDC	0.056 µF	Through Hole	0.169 in	0.315 "	8 mm	4.3 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose		0.335 in	8.5 mm
Panasonic Industrial Automation Sales ECQ-B1H182JF3	5 %	7 mm	0.276 "	5 mm	0.197 in	50 VDC	1800 pF	Through Hole	0.118 in	0.276 "	7 mm	3 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose
Panasonic Industrial Automation Sales ECQ-B1H273JF	5 %			5 mm	0.197 in	50 VDC	0.027 µF	Through Hole			0.295 " 7.5 mm	0.138 in 3.5 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose		0.295 in	7.5 mm
Panasonic Industrial Automation Sales ECQ-B1H124JF3	5 %	10.5 mm	0.413 in	5 mm	0.197 in	50 VDC	0.12 µF	Through Hole	0.197 "	0.433 in	11 mm	5 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose
Panasonic Industrial Automation Sales ECQ-B1H562JF	5 %	7 mm	0.276 "	5 mm	0.197 in	50 VDC	5600 pF	Through Hole	0.118 in	0.276 "	7 mm	3 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose

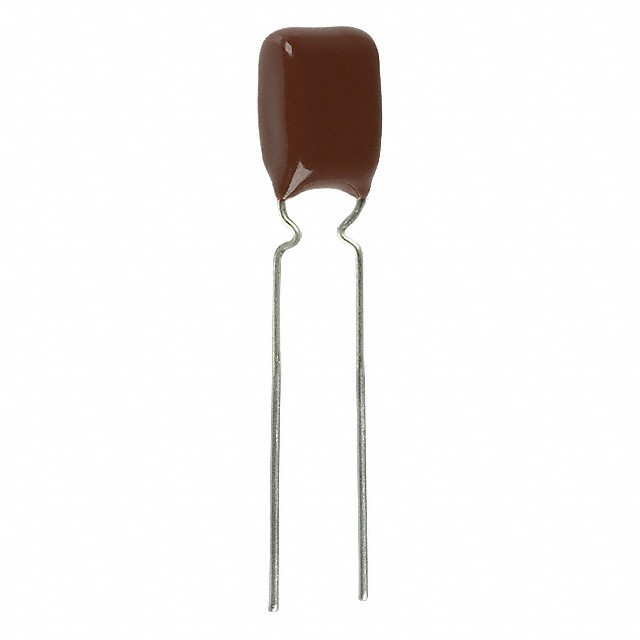

Panasonic Industrial Automation Sales ECQ-B1H104JF3	5 %			5 mm	0.197 in	50 VDC	100000 pF	Through Hole	0.197 "	0.315 "	8 mm	5 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose		0.433 in	11 mm

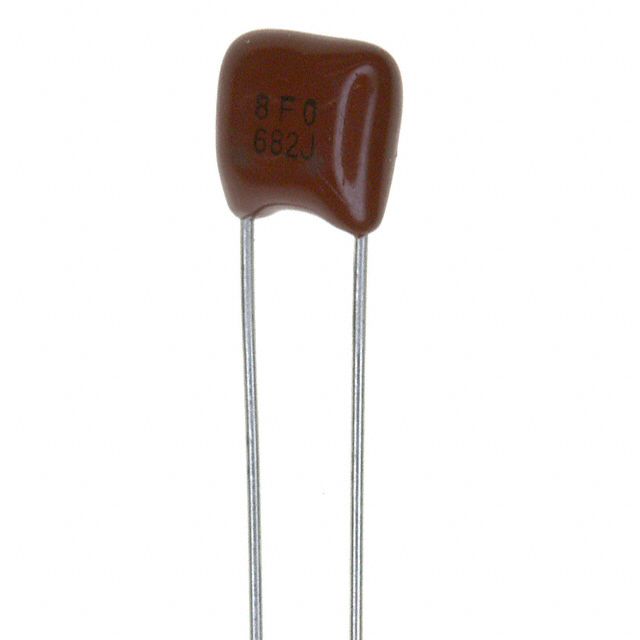

Panasonic Industrial Automation Sales ECQ-B1H682JF	5 %	7 mm	0.276 "	5 mm	0.197 in	50 VDC	6800 pF	Through Hole	0.118 in	0.276 "	7 mm	3 mm	PC Pins	Polyester	Radial	-40 °C	105 ░C	General Purpose
