TDA892 Series

Catalog

IC AMP D MONO/STEREO 210W DBS23P

Part	Package / Case	Package Name	Features	Type	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Load Impedance	Channels	Maximum Output Power (per Channel)	Mounting Type	Interface	Package Length	Package Width	Applications	Number of Channels	Specifications	Grade	Function	Package Features
NXP USA Inc. TDA8920BJ/N2,112	23-SIP Formed Leads	DBS23P	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	Class D	1-Channel (Mono) or 2-Channel (Stereo)	85 °C	-40 °C	-12.5 V	30 VDC	3 Ohm 6 Ohm	1 2	110 W 210 W	Through Hole
NXP USA Inc. TDA8929T/N1,112		24-SO 24-SOIC				85 °C	-40 °C	-15 V	30 VDC				Surface Mount	Serial	0.295 in	7.5 mm	Audio	2	Class D	Automotive	Audio Signal Processor
NXP USA Inc. TDA8924TH/N2,118		24-BSOP 24-HSOP	Thermal Shutdown Protection	Class D	2-Channel (Stereo)			-12.5 V	30 VDC	2 Ohm	2	120 W	Surface Mount		0.433 in	11 mm						Exposed Pad
NXP USA Inc. TDA8920TH/N1,118		24-BSOP 24-HSOP	Depop Differential Inputs Mute PWM Short-Circuit and Thermal Protection Standby	Class D	1-Channel (Mono) or 2-Channel (Stereo)	85 °C	-40 °C	-12.5 V	30 VDC	4 Ohm 8 Ohm	1 2	80 W 140 W	Surface Mount		0.433 in	11 mm						Exposed Pad
NXP USA Inc. TDA8929T/N1,118		24-SO 24-SOIC				85 °C	-40 °C	-15 V	30 VDC				Surface Mount	Serial	0.295 in	7.5 mm	Audio	2	Class D	Automotive	Audio Signal Processor
NXP USA Inc. TDA8922CTH/N1,118		24-BSOP 24-HSOP	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	Class D	1-Channel (Mono) or 2-Channel (Stereo)	85 °C	-40 °C	-12.5 V	32.5 V	6 Ohm 8 Ohm	1 2	75 W 155 W	Surface Mount		0.433 in	11 mm						Exposed Pad
NXP USA Inc. TDA8920BTH/N2,118		24-BSOP 24-HSOP	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	Class D	1-Channel (Mono) or 2-Channel (Stereo)	85 °C	-40 °C	-12.5 V	30 VDC	3 Ohm 6 Ohm	1 2	110 W 210 W	Surface Mount		0.433 in	11 mm						Exposed Pad

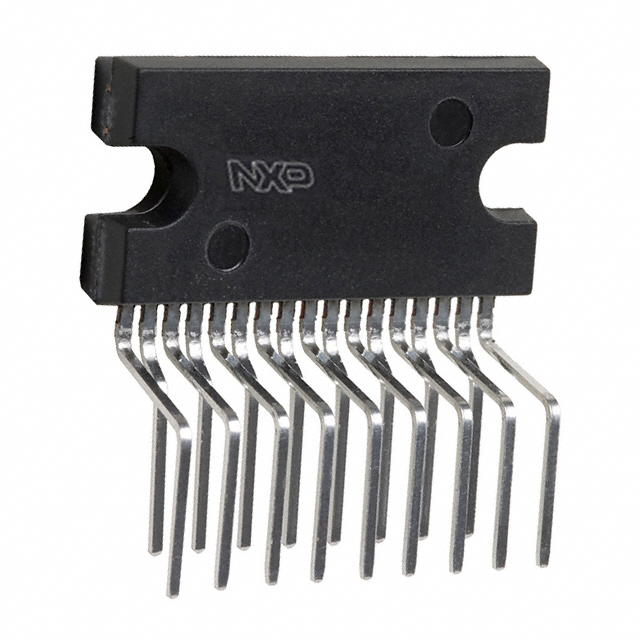

NXP USA Inc. TDA8925ST/N1,112	17-SIP Formed Leads	17-RDBS	Short-Circuit and Thermal Protection	Class D	2-Channel (Stereo)	85 °C	-40 °C	-7.5 V	30 VDC	6 Ohm	2	20 W	Through Hole
NXP USA Inc. TDA8920CTH/N1,118		24-BSOP 24-HSOP	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	Class D	1-Channel (Mono) or 2-Channel (Stereo)	85 °C	-40 °C	-12.5 V	32.5 V	4 Ohm 8 Ohm	1 2	125 W 220 W	Surface Mount		0.433 in	11 mm						Exposed Pad
NXP USA Inc. TDA8922TH/N1,518		24-BSOP 24-HSOP	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	Class D	1-Channel (Mono) or 2-Channel (Stereo)	85 °C	-40 °C	-12.5 V	30 VDC	8 Ohm	1 2	40 W 50 W	Surface Mount		0.433 in	11 mm						Exposed Pad
