430026 Series

Catalog

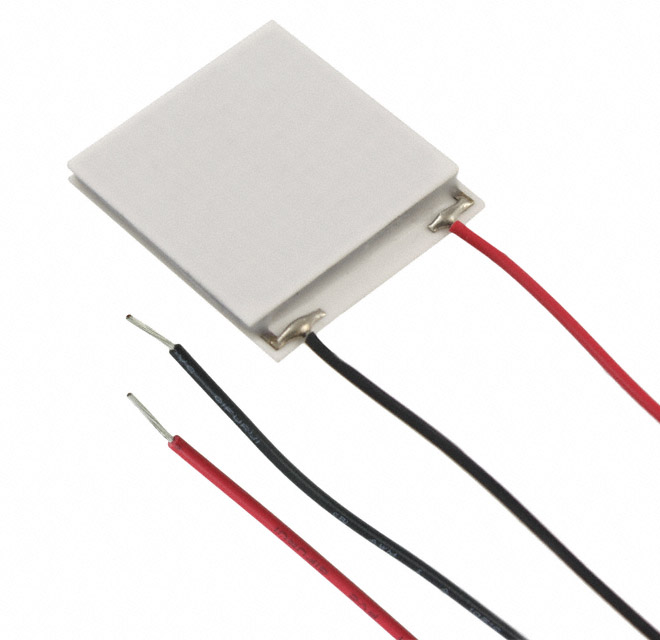

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, PORCH STYLE CERAMIC, 33W, 4A, 13.87V, 34X30X3.2MM (LXWXH)

Part	Height [z]	Features	Operating Temperature	Current - Max [Max]	Delta Tmax @ Th	Qmax @ Th	Resistance	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Number of Stages

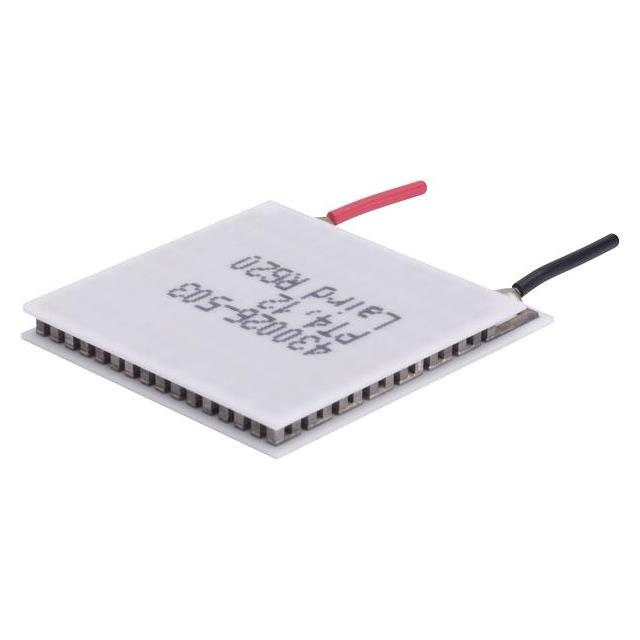

Laird Thermal Systems, Inc. 430026-503	3.2 mm	Lead Wires Non-Sealed	80 °C	4 A	65 °C	34.3 W	3.36 Ohms	34 mm	30 mm	14.5 V	1
Laird Thermal Systems, Inc. 430026-507	3.2 mm	Lead Wires Sealed - Silicone RTV	80 °C	4 A	65 °C	34.3 W	3.36 Ohms	34 mm	30 mm	14.5 V	1
Laird Thermal Systems, Inc. 430026-508	3.2 mm	Lead Wires Sealed - Epoxy	80 °C	4 A	65 °C	34.3 W	3.36 Ohms	34 mm	30 mm	14.5 V	1
