AA60S Series

Catalog

AC/DC CONVERTER 15V 60W

Part	Load Regulation	Line Regulation	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Power (Watts)	Applications	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Approval Agency	Efficiency	Mounting Type	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Output 1	Voltage - Output 1 [custom]	Current - Output 1	Voltage - Isolation

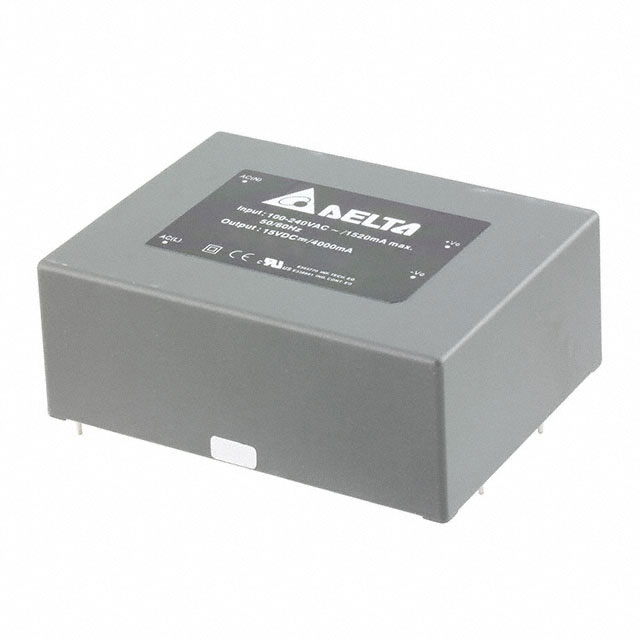

Delta Electronics AA60S1500A	0.5 %	0.2 %	345.18 g	0.761 lb	2.66 in	34.2 mm	1.35 in	3.5 "	88.9 mm	67.5 mm	Universal Input	60 W	ITE (Commercial)	6-DIP Module 4 Leads	1	4 A	CE UL	83 %	Through Hole	60950-1	70 °C	-10 °C	Enclosed	15 V
Delta Electronics AA60S3600A	0.5 %	0.2 %	345.18 g	0.761 lb	2.66 in	34.2 mm	1.35 in	3.5 "	88.9 mm	67.5 mm	Universal Input	60 W	ITE (Commercial)	6-DIP Module 4 Leads	1	1.67 A	CE UL	84 %	Through Hole	60950-1	70 °C	-10 °C	Enclosed		36 V

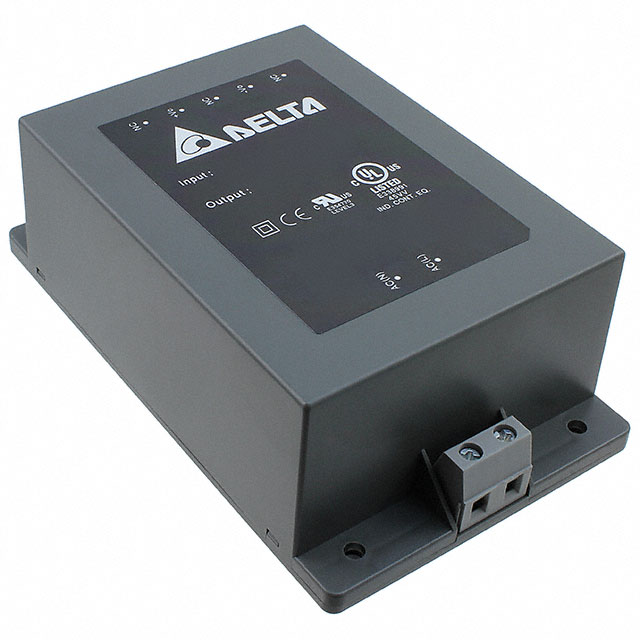

Delta Electronics AA60S1500C					2.67 in	38 mm	1.5 in	4.41 "	112 mm	67.8 mm	DC Input Capable Universal Input	60 W	ITE (Commercial)		1		CE	83 %	Chassis Mount		70 °C	-10 °C	Enclosed	15 V		4 A	3000 V
Delta Electronics AA60S2400A	0.5 %	0.2 %	345.18 g	0.761 lb	2.66 in	34.2 mm	1.35 in	3.5 "	88.9 mm	67.5 mm	Universal Input	60 W	ITE (Commercial)	6-DIP Module 4 Leads	1	2.5 A	CE UL	84 %	Through Hole	60950-1	70 °C	-10 °C	Enclosed	24 V
Delta Electronics AA60S0500C					2.67 in	38 mm	1.5 in	4.41 "	112 mm	67.8 mm	DC Input Capable Universal Input	60 W	ITE (Commercial)		1		CE	79 %	Chassis Mount		70 °C	-10 °C	Enclosed	5 V		10 A	3000 V
