2842166 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

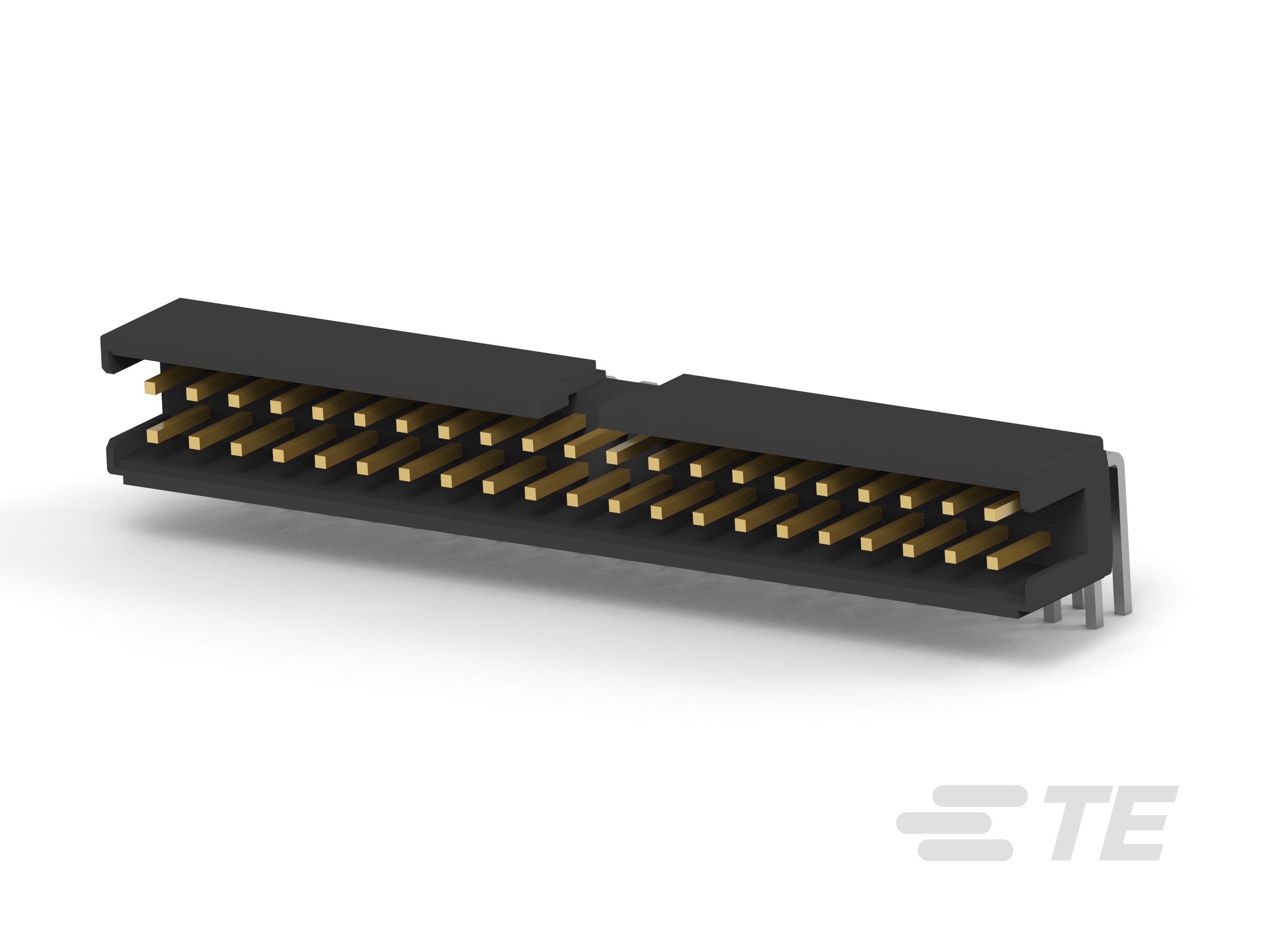

50P,2MM,SHRD HDR,DRRT,0.1AU,TB

Part	Voltage Rating	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Post	Style	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Material	Current Rating (Amps)	Contact Finish - Mating	Contact Shape	Insulation Color	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Fastening Type	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Shrouding	Number of Positions	Contact Type	Applications	Number of Positions
TE Connectivity Raychem Cable Protection 5-2842166-0	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	50	Male Pin
TE Connectivity Raychem Cable Protection 3-2842166-8	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	38	Male Pin
TE Connectivity Raychem Cable Protection 2-2842166-6	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	26	Male Pin
TE Connectivity Raychem Cable Protection 2-2842166-0	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	20	Male Pin
TE Connectivity Raychem Cable Protection 4-2842166-8	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	48	Male Pin
TE Connectivity Raychem Cable Protection 1-2842166-8	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	18	Male Pin
TE Connectivity Raychem Cable Protection 2842166-6	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.145 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	6	Male Pin	General Purpose Industrial
TE Connectivity Raychem Cable Protection 4-2842166-6	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	46	Male Pin
TE Connectivity Raychem Cable Protection 1-2842166-6	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall		Male Pin		16
TE Connectivity Raychem Cable Protection 4-2842166-4	125 VAC	All	UL94 V-0	Tin	Board to Board Cable	125 °C	-40 °C	Thermoplastic	3.94 µin	0.1 µm	Header	Copper Alloy	2 A	Gold	Square	Black	Solder	2 çm	78.7 çin	Through Hole Right Angle	Detent Lock	2.5 mm	0.098 in	0.079 in	2 mm	3.7 mm	0.146 in	2	0.079 in	2 mm	0.24 in	6.1 mm	Shrouded - 2 Wall	44	Male Pin
