WR9QE3000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

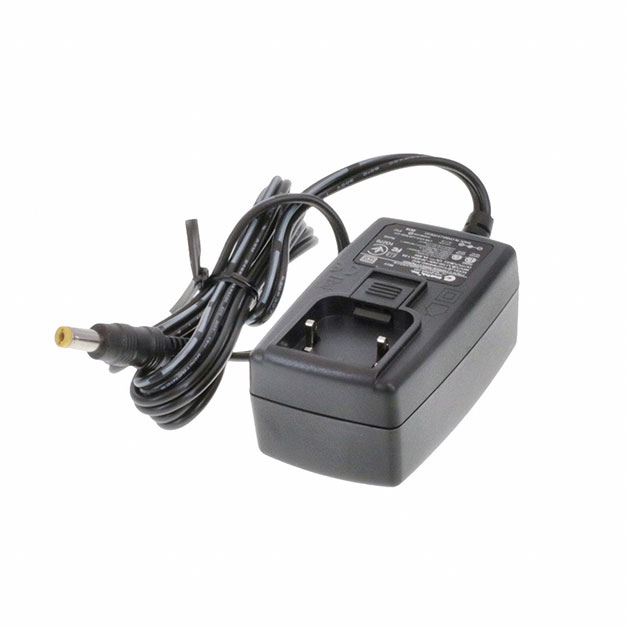

AC/DC WALL MOUNT ADAPTER 12V 36W
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output (Max) [Max] | Form | Efficiency | Applications | Input Type | No Load Power Consumption | Output Connector [x] | Output Connector [diameter] | Output Connector | Power (Watts) | Voltage - Output | Operating Temperature [Max] | Operating Temperature [Min] | Polarization | Approval Agency | Region Utilized | Input Connector | Cord Length | Cord Length | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 264 VAC | 90 VAC | 3 A | Wall Mount | Level VI | Household Appliances ITE (Commercial) Medical | Multi-Blade (Sold Separately) | 75 mW | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 36 W | 12 V | 40 °C | 0 °C | Positive Center | CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI | International | Multi-Blade (Sold Separately) | 1.2 m | 47.2 in | 1.71 " | 2.91 in | 74 mm | 35.3 mm | 1.39 in | 43.5 mm | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 |
