GBC21D Series

Catalog

CONN HEADER SMD 42POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insulation Material	Shrouding	Number of Positions	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Style	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Material	Mounting Type	Contact Type	Current Rating (Amps)	Material Flammability Rating	Contact Shape	Termination	Insulation Height	Insulation Height	Contact Finish - Post

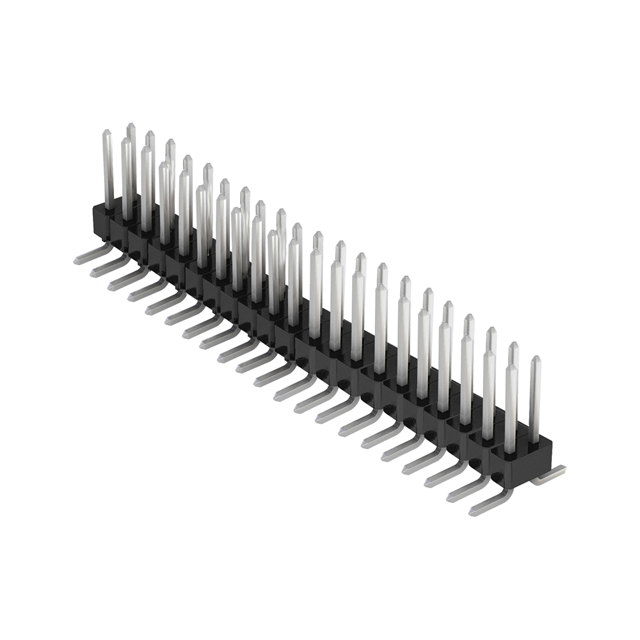

Sullins Connector Solutions GBC21DABN-M30	2.54 µm	100 µin	0.1 "	2.54 mm	0.25 µm	10 µin	Black	All	150 °C	-65 ░C	Header Breakaway	Nylon 9T Polyamide (PA9T)	Unshrouded	42	0.23 in	5.84 mm	2	Board to Board Cable	Push-Pull	0.1 in	2.54 mm	Gold	Phosphor Bronze	Surface Mount	Male Pin	3 A	UL94 V-0	Square	Solder	0.1 in	2.54 mm	Tin
