292232 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

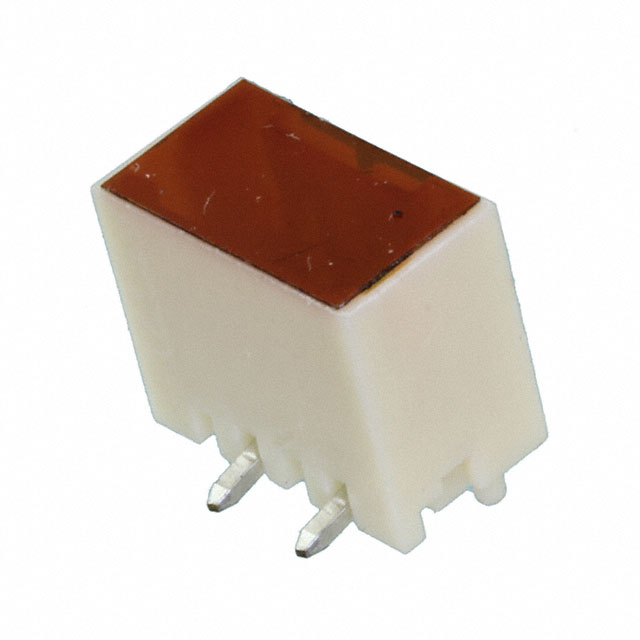

CONN HEADER SMD 4POS 1.5MM
| Part | Fastening Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Number of Positions Loaded | Number of Positions | Insulation Height | Insulation Height [z] | Voltage Rating | Material Flammability Rating | Insulation Color | Mounting Type | Contact Type | Applications | Style | Contact Shape | Features | Contact Material | Number of Rows | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Contact Finish - Post | Current Rating (Amps) | Connector Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Detent Lock | Solder | -30 ░C | 105 ░C | Shrouded - 4 Wall | All | 4 | 6.91 mm | 0.272 " | 50 VAC | UL94 V-0 | Beige | Surface Mount | Male Pin | General Purpose | Board to Cable/Wire | Square | Board Guide Pick and Place | Brass | 1 | 2.4 mm | 0.094 in | Tin | Varies by Wire Gauge | Header | Glass Filled Nylon Polyamide (PA) |
TE Connectivity Raychem Cable Protection | Detent Lock | Solder | -30 ░C | 105 ░C | Shrouded - 4 Wall | All | 6 | 6.91 mm | 0.272 " | 50 VAC | UL94 V-0 | Beige | Surface Mount | Male Pin | General Purpose | Board to Cable/Wire | Square | Board Guide Pick and Place | Brass | 1 | 2.4 mm | 0.094 in | Tin | Varies by Wire Gauge | Header | Glass Filled Nylon Polyamide (PA) |
