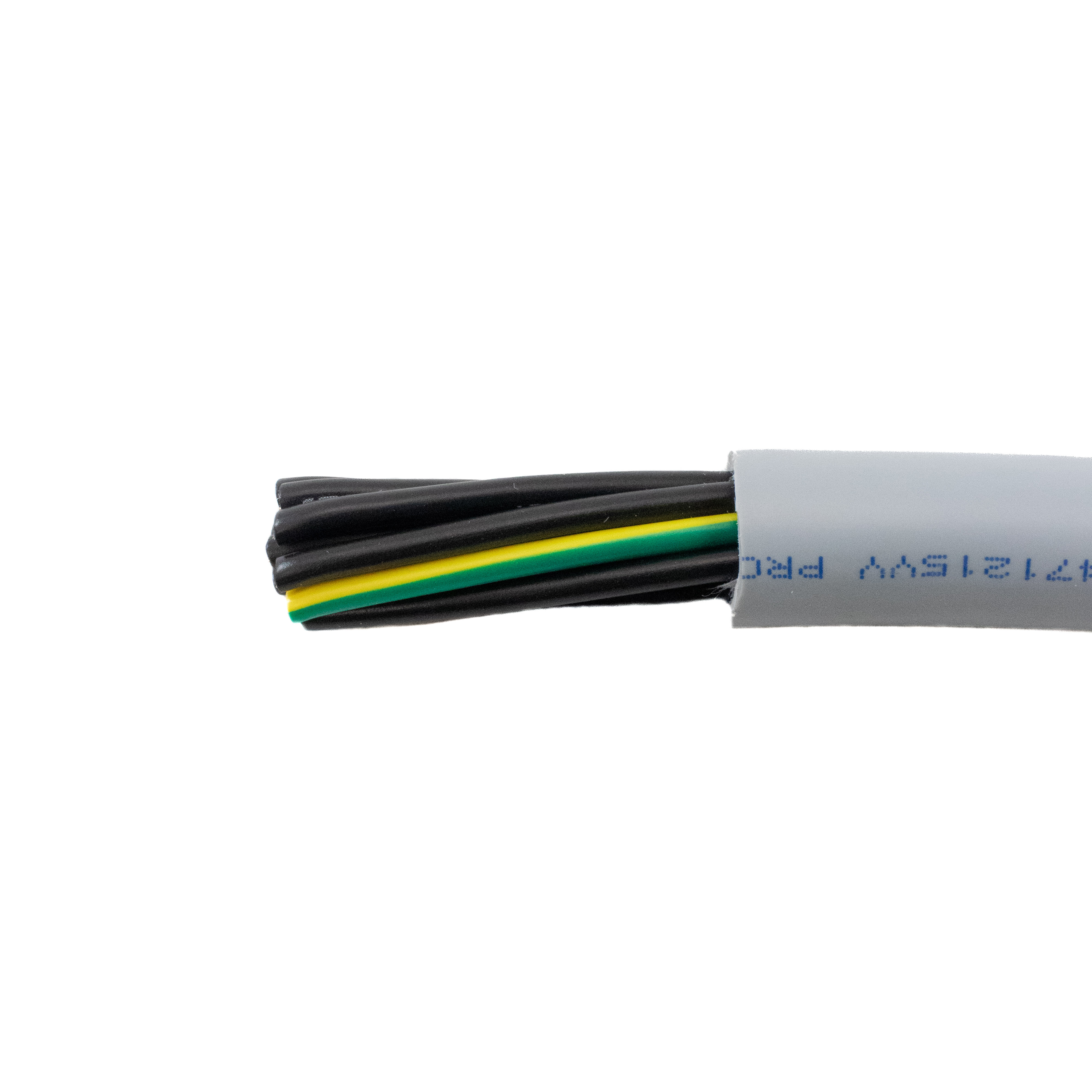

470041YY Series
Manufacturer: ALPHA WIRE
Catalog
MULTI-CONDUCTOR CABLES PRO-MET
| Part | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Length [x] | Length [x] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Voltage | Jacket (Insulation) Material | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | Copper Bare | 0.0295 in | 0.749 mm | Multi-Conductor | 0.0079 " | 30 | 4 | 17 AWG | 328.1 ft | 100 m | Chemical Resistant Oil Resistant UV Resistant | 80 °C | -40 C | Gray | 0.259 in | 6.58 mm | Industrial | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Copper Bare | 0.0295 in | 0.749 mm | Multi-Conductor | 0.0079 " | 30 | 4 | 17 AWG | Chemical Resistant Oil Resistant UV Resistant | 80 °C | -40 C | Gray | 0.259 in | 6.58 mm | Industrial | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 50 m | 164 ft | ||
 ALPHA WIRE | Copper Bare | 0.0295 in | 0.749 mm | Multi-Conductor | 0.0079 " | 30 | 4 | 17 AWG | 98.43 ft | 30 m | Chemical Resistant Oil Resistant UV Resistant | 80 °C | -40 C | Gray | 0.259 in | 6.58 mm | Industrial | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 1 m 10 m 20 m | 3.28 ft 32.81 ft 65.62 ft |
