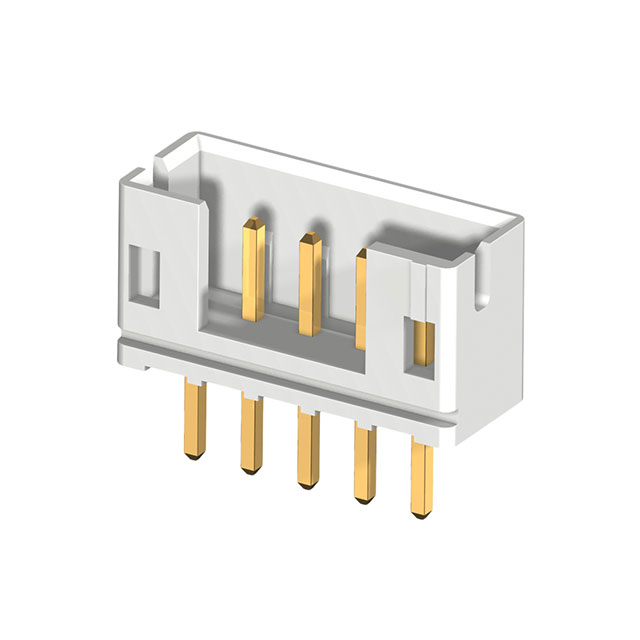

CI0105P1 Series
Manufacturer: Cvilux USA
Beta
⌘K
5 POS 2.00MM(.079) SINGLE ROW ST
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Shape | Insulation Height [z] | Insulation Height [z] | Connector Type | Current Rating (Amps) | Contact Type | Style | Number of Positions Loaded | Insulation Color | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Termination | Insulation Material | Contact Material | Shrouding | Fastening Type | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | 120 Áin | 3.05 Ám | 1 | Through Hole | 105 ░C | -25 °C | 250 VAC | Square | 6.1 mm | 0.24 in | Header | 2 A | Male Pin | Board to Cable/Wire | All | Natural | Tin | 0.079 " | 2 mm | Kinked Pin Solder | Halogen Free Nylon 6T Polyamide (PA6T) | Brass | Shrouded - 4 Wall | Detent Lock | UL94 V-0 | 0.134 " | 3.4 mm | 5 | 120 µin | 3.05 µm |
