AMP MCP 2.8 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN RCPT HSG 21POS 5.00MM
| Part | Insulation Material | Contact Termination | Mounting Type | Connector Type | Fastening Type | Number of Positions | Contact Type | Pitch | Pitch | Row Spacing | Row Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Rows [custom] | For Use With/Related Products | Accessory Type | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Wire Gauge [custom] | Wire Gauge [custom] | Type | Number of Rows | Features | Cable Termination | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Free Hanging (In-Line) | Receptacle | Latch Lock | 21 | Female Socket | 0.197 in | 5 mm | 0.217 in | 5.51 mm | 120 °C | -40 C | Brown | 3 | |||||||||||||||
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Free Hanging (In-Line) | Receptacle | Latch Lock | 18 | Female Socket | 0.197 in | 5 mm | 0.217 in | 5.51 mm | 100 °C | -30 ░C | Blue | 3 | |||||||||||||||

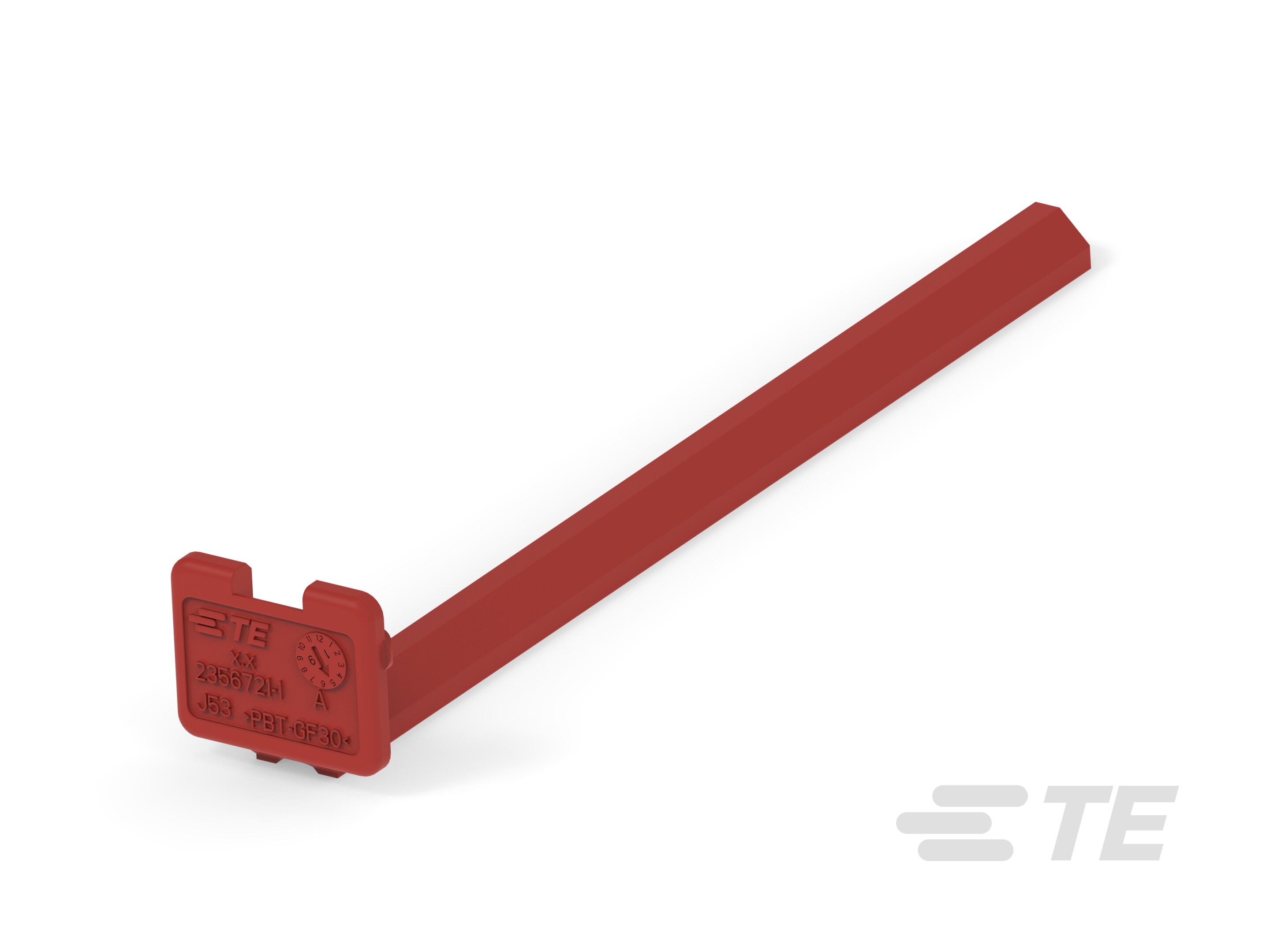

 TE Connectivity AMP Connectors | 22 | MCP Series | Terminal Position Assurance (TPA) | |||||||||||||||||||||||||||

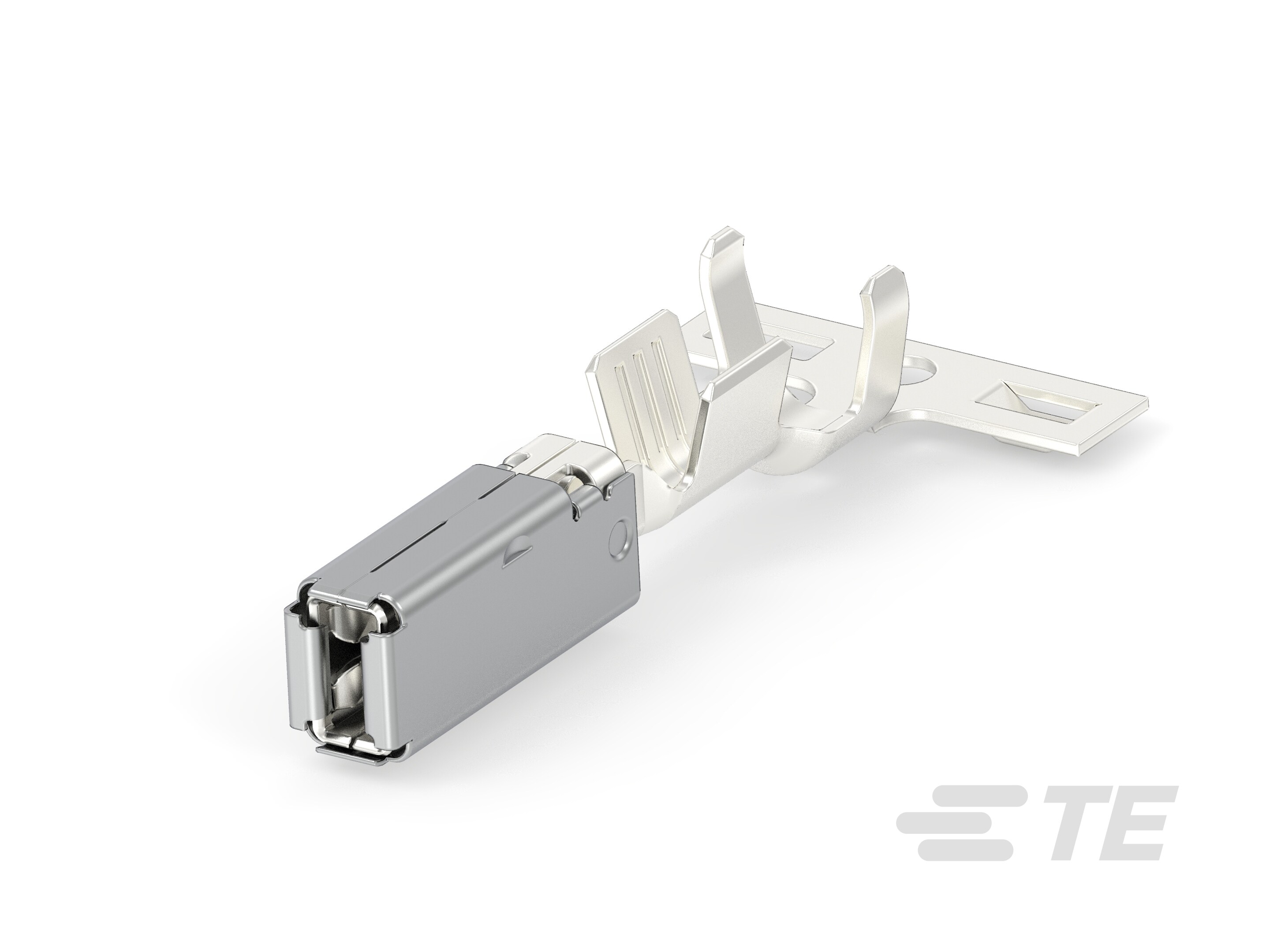

 TE Connectivity AMP Connectors | Crimp | Socket | 3 µm | 118.1 µin | 24 AWG | 19.5 AWG | Silver | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Socket | 0.8 µm | 31.5 µin | Gold | 17 | 20 AWG | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Socket | 3 µm | 118.1 µin | 18 AWG | 13 AWG | Silver | Stamped | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) | Crimp | Free Hanging (In-Line) | Housing for Female Insert | Latch Lock | 4 | Female Socket | 0.236 in | 6 mm | 130 °C | -40 C | Black | 1 | Terminal Position Lock (TPA) | ||||||||||||||||
 TE Connectivity AMP Connectors | Panel Mount Snap-In | Receptacle | Latch Lock | 18 | Tab | 0.197 in | 5 mm | 0.217 in | 5.5 mm | Natural | 3 | Gold | IDC | Discrete | ||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Socket | 3 µm | 118.1 µin | 13 AWG | 11 AWG | Silver | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Socket | 3 µm | 118.1 µin | 17 AWG | 13 AWG | Silver | Stamped |
