10046593 Series

Catalog

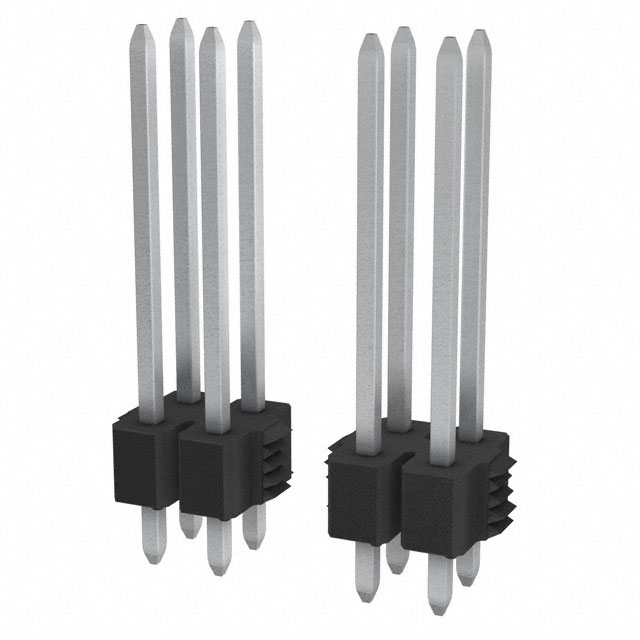

CONN HEADER VERT 20000POS 2.54MM

Part	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Shape	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Type	Material Flammability Rating	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions Loaded	Contact Finish - Post
Amphenol ICC (FCI) 10046593-400H	12.83 mm	0.505 in	Unshrouded	Square	0.1 in	2.54 mm	130 °C	-65 ░C	2	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Cuttable	Male Pin	UL94 V-0	Through Hole	Solder	120 µin	3.05 µm	Black	3 A	Tin-Lead	Header Breakaway	0.695 in	17.65 mm	2.29 mm	0.09 in	Brass	All
Amphenol ICC (FCI) 10046593-400HLF	12.83 mm	0.505 in	Unshrouded	Square	0.1 in	2.54 mm	130 °C	-65 ░C	2	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Cuttable	Male Pin	UL94 V-0	Through Hole	Solder	100 çin	2.54 çm	Black	3 A		Header Breakaway	0.695 in	17.65 mm	2.29 mm	0.09 in	Brass	All	Tin
