G874D Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN HEADER VERT 16POS 4.2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Shrouding	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Voltage Rating	Number of Positions Loaded	Connector Type	Contact Material	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Type	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Style	Termination	Insulation Color	Contact Shape	Row Spacing - Mating	Row Spacing - Mating
Amphenol ICC (Commercial Products) G874D161202CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	0.165 in	4.2 mm	0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	16	Board to Cable/Wire	Solder	Natural	Square	0.165 in	4.2 mm

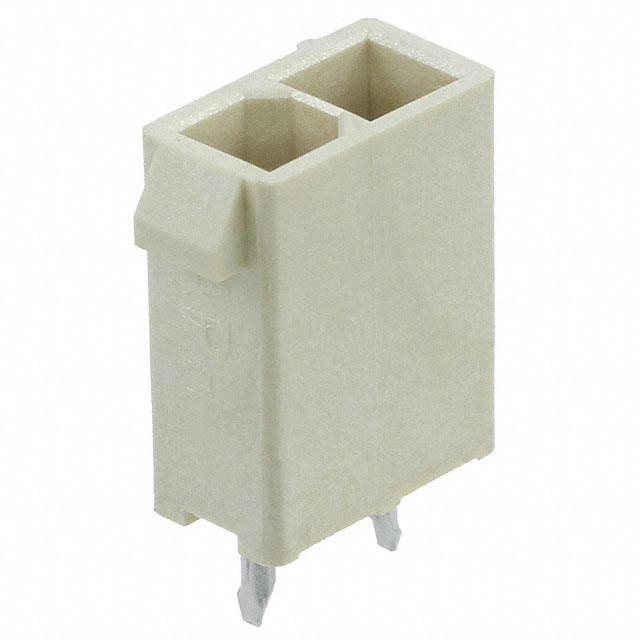

Amphenol ICC (Commercial Products) G874D021202CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0			0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	2	Board to Cable/Wire	Solder	Natural	Square	0.165 in	4.2 mm

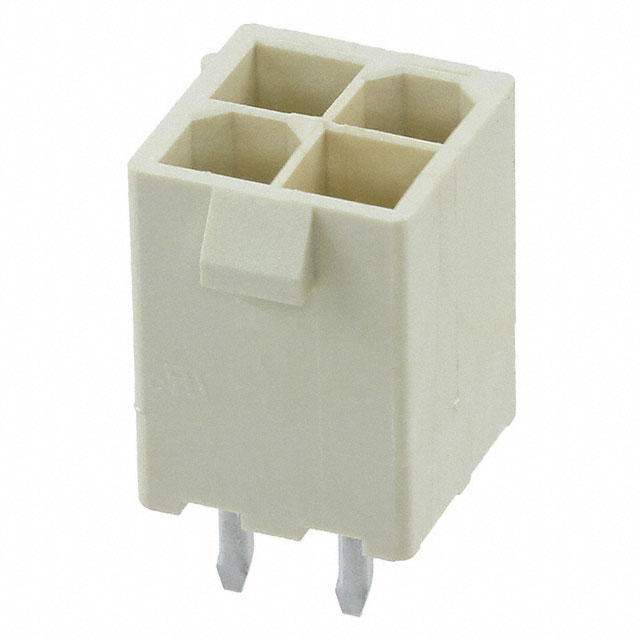

Amphenol ICC (Commercial Products) G874D041202CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	0.165 in	4.2 mm	0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	4	Board to Cable/Wire	Solder	Natural	Square	0.165 in	4.2 mm

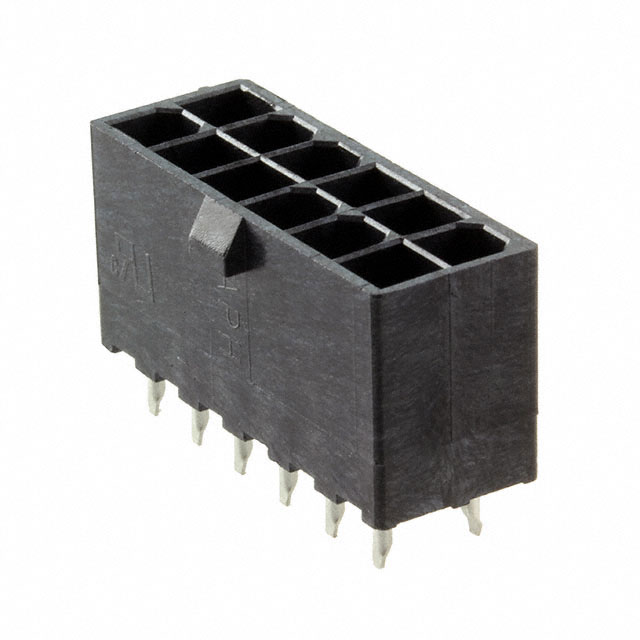

Amphenol ICC (Commercial Products) G874D121205CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	0.165 in	4.2 mm	0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	12	Board to Cable/Wire	Solder	Black	Square	0.165 in	4.2 mm

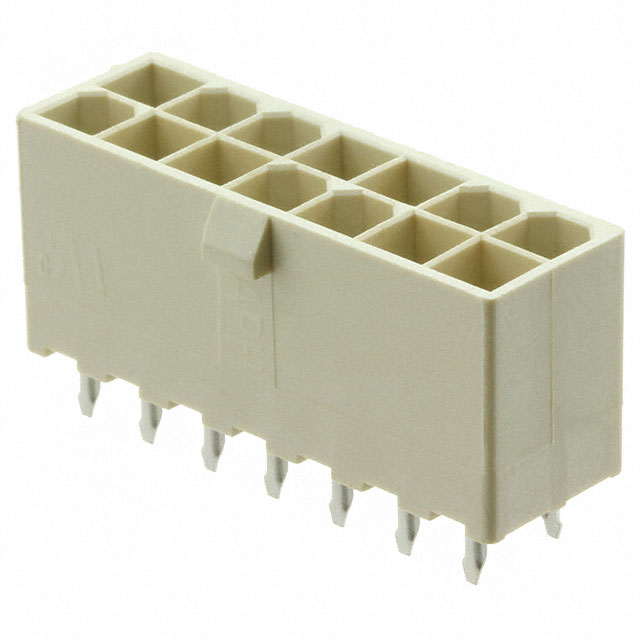

Amphenol ICC (Commercial Products) G874D141202CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	0.165 in	4.2 mm	0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	14	Board to Cable/Wire	Solder	Natural	Square	0.165 in	4.2 mm

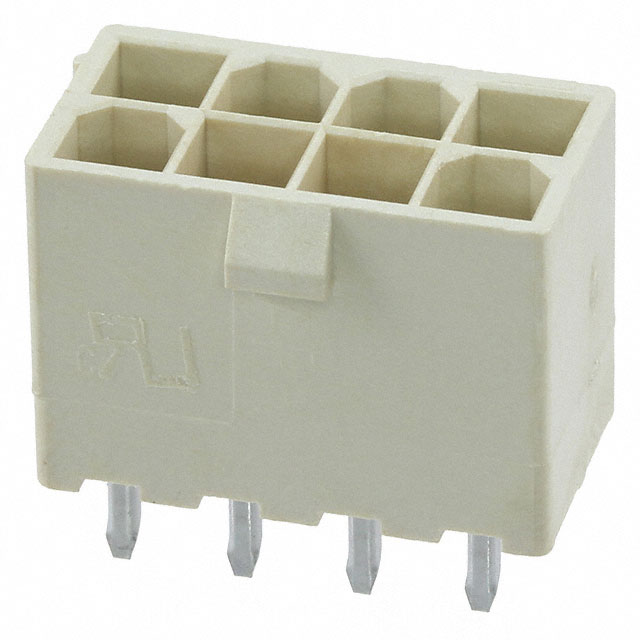

Amphenol ICC (Commercial Products) G874D081202CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	0.165 in	4.2 mm	0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	8	Board to Cable/Wire	Solder	Natural	Square	0.165 in	4.2 mm

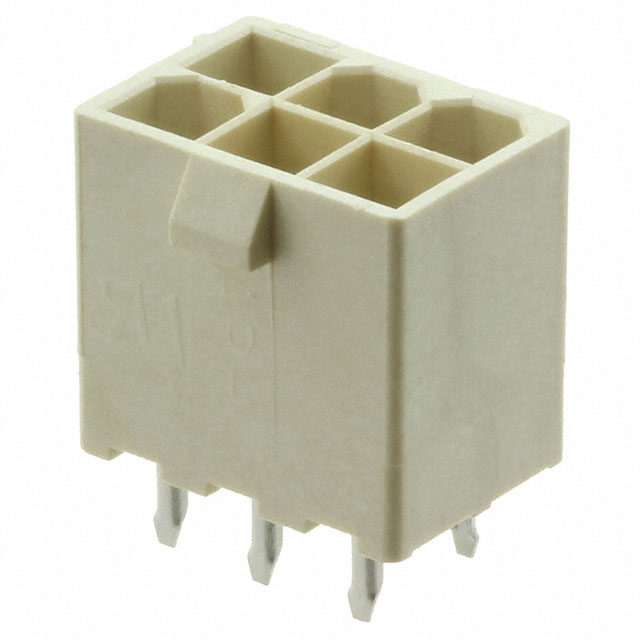

Amphenol ICC (Commercial Products) G874D061202CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	0.165 in	4.2 mm	0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	6	Board to Cable/Wire	Solder	Natural	Square	0.165 in	4.2 mm

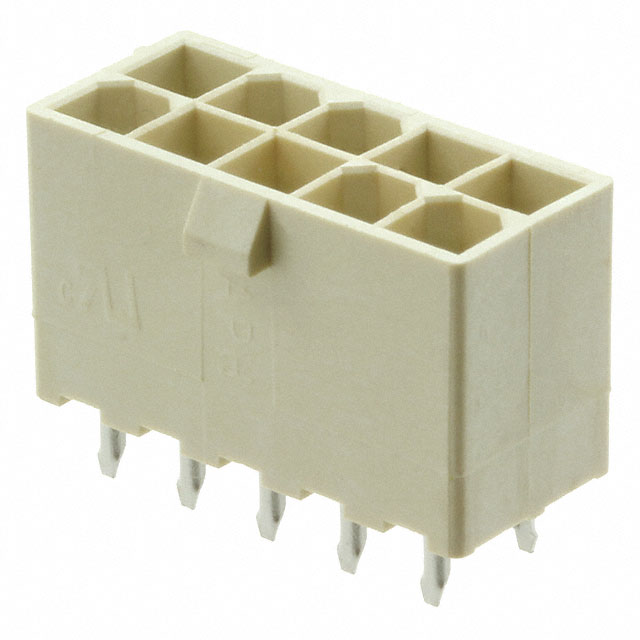

Amphenol ICC (Commercial Products) G874D101202CEU	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	UL94 V-0	0.165 in	4.2 mm	0.138 in	3.5 mm	2	600 V	All	Header	Brass	Tin	80 °C	-30 ░C	Locking Ramp	Male Pin	12.8 mm	0.504 "	Through Hole	100 çin	2.54 çm	10	Board to Cable/Wire	Solder	Natural	Square	0.165 in	4.2 mm
