SLW16 Series

Catalog

CONN FFC FPC BOTTOM 16POS 1MM RA

Part	Actuator Color	Mating Cycles	Housing Color	Height Above Board [z]	Height Above Board [z]	Number of Positions	Cable End Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Actuator Material	Locking Feature	Flat Flex Type	Pitch	Pitch	Contact Finish	Contact Material	Material Flammability Rating	Connector/Contact Type	Termination	Voltage Rating	FFC, FCB Thickness

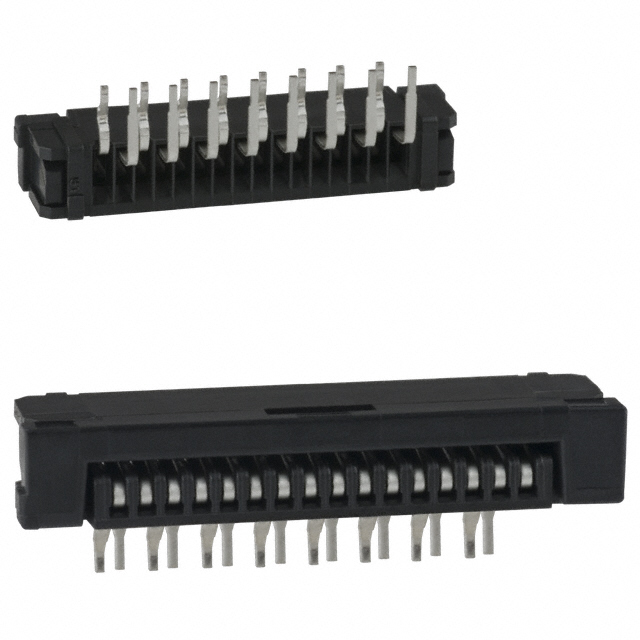

Amphenol ICC (FCI) SLW16R-1C7	Black	20	Black	0.157 in	4 mm	16	Straight Tapered	Glass Filled Nylon Polyamide (PA)	-55 C	105 ░C	Right Angle Through Hole	0.3 mm	0.33 mm	Glass Filled Nylon Polyamide (PA)	Slide Lock	FFC FPC	1 mm	0.039 in	Tin Alloy	Phosphor Bronze	UL94 V-0	Contacts Bottom	Kinked Pin	100 V

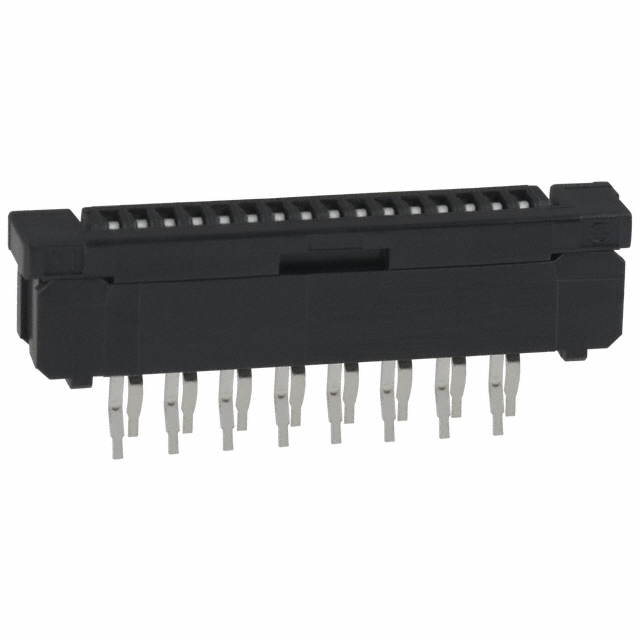

Amphenol ICC (FCI) SLW16S-1C7LF		20	Black	0.217 in	5.5 mm	16		Glass Filled Nylon Polyamide (PA)	-55 C	85 °C	Through Hole			Glass Filled Nylon Polyamide (PA)	Slide Lock	FFC FPC	1 mm	0.039 in	Tin	Phosphor Bronze	UL94 V-0	Contacts Vertical - 1 Sided	Kinked Pin	100 V	0.33 mm
