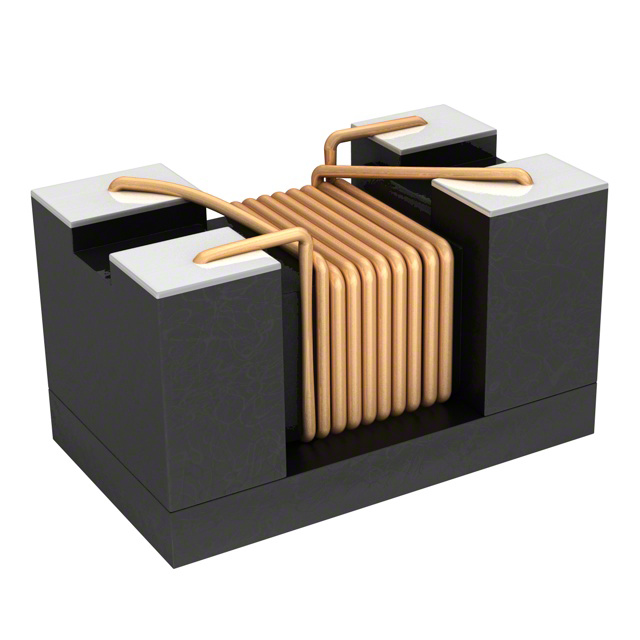

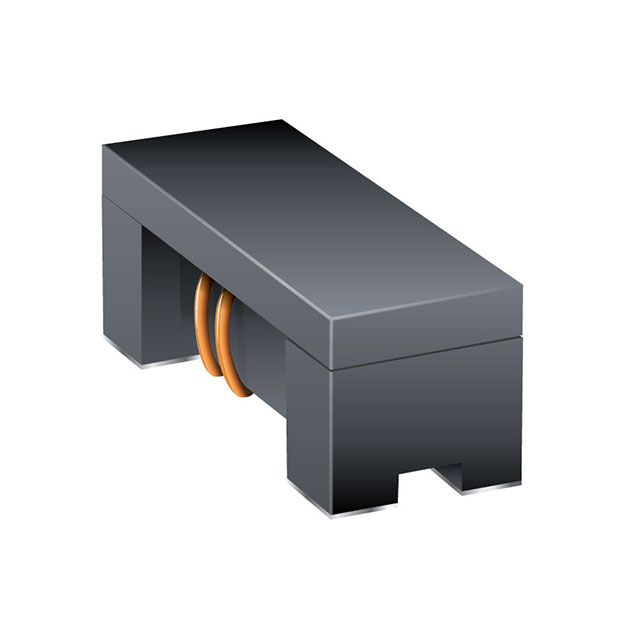

SRF2012A Series

Catalog

COMMON MODE CHOKES / FILTERS 90UH 25%

Part	DC Resistance (DCR) (Max) [Max]	Filter Type	Number of Lines	Package / Case	Height (Max) [z]	Height (Max) [z]	Voltage Rating - DC	Current Rating (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Impedance @ Frequency	Ratings
Bourns Inc. SRF2012A-900YA	300 mOhm	Signal Line	2	Horizontal 4 PC Pad	1.4 mm	0.055 in	50 VDC	400 mA	Surface Mount	-55 C	125 °C	0.079 in	0.047 in	1.2 mm	2 mm	90 Ohms
Bourns Inc. SRF2012A-801Y	880 mOhm		2	Horizontal 4 PC Pad	1.4 mm	0.055 in	50 VDC	300 mA	Surface Mount	-55 C	125 °C	0.079 in	0.047 in	1.2 mm	2 mm	800 Ohms
Bourns Inc. SRF2012A-221YA	400 mOhm	Signal Line	2	Horizontal 4 PC Pad	1.4 mm	0.055 in	50 VDC	300 mA	Surface Mount	-40 C	125 °C	0.079 in	0.047 in	1.2 mm	2 mm	220 Ohms	AEC-Q200
Bourns Inc. SRF2012A-161YA	350 mOhm	Signal Line	2	Horizontal 4 PC Pad	1.4 mm	0.055 in	50 VDC	350 mA	Surface Mount	-40 C	125 °C	0.079 in	0.047 in	1.2 mm	2 mm	160 Ohms	AEC-Q200
Bourns Inc. SRF2012A-670YA	250 mOhm	Signal Line	2	Horizontal 4 PC Pad	1.4 mm	0.055 in	50 VDC	400 mA	Surface Mount	-40 C	125 °C	0.079 in	0.047 in	1.2 mm	2 mm	67 Ohms
Bourns Inc. SRF2012A-261YA	400 mOhm	Signal Line	2	Horizontal 4 PC Pad	1.4 mm	0.055 in	50 VDC	300 mA	Surface Mount	-40 C	125 °C	0.079 in	0.047 in	1.2 mm	2 mm	260 Ohms	AEC-Q200
