ISL28634 Series

5V, Rail-Rail I/O, Zero-Drift, Differential Output Programmable Gain Instrumentation Amplifier

Manufacturer: Renesas Electronics Corporation

Catalog

5V, Rail-Rail I/O, Zero-Drift, Differential Output Programmable Gain Instrumentation Amplifier

Part	Output Type	Supplied Contents	Amplifier Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Board Type	Current - Output / Channel	Current - Supply (Main IC)	Channels per IC	Slew Rate	Current - Supply	Package / Case [custom]	Package / Case [custom]	Package / Case	Voltage - Input Offset	Gain Bandwidth Product	Voltage - Supply Span (Min) [Min]	Number of Circuits	Supplier Device Package	Mounting Type	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]

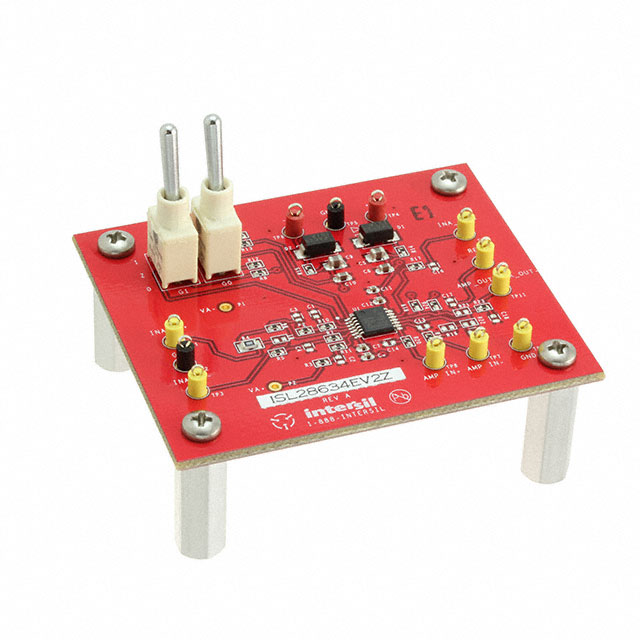

Renesas Electronics Corporation ISL28634EV2Z	Differential Rail-to-Rail	Board(s)	Zero-Drift	-1.25 V 2.5 V	2.75 V 5.5 V	ISL28634	Fully Populated	45 mA	2.9 mA	1 - Single	0.8 V/µs
Renesas Electronics Corporation ISL28634FVZ-T7A	Rail-to-Rail		Zero-Drift					45 mA			0.8 V/µs	3 mA	0.173 "	4.4 mm	14-TSSOP	0.2 µV	2.3 MHz	2.5 V	1	14-TSSOP	Surface Mount	50 pA	5.5 V	125 °C	-40 °C

Catalog

5V, Rail-Rail I/O, Zero-Drift, Differential Output Programmable Gain Instrumentation Amplifier

Description
