4015-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Features
Mill-Max Manufacturing Corp. 4015-0-15-80-30-84-10-0	-55 C	125 °C	Beryllium Copper	Solder	1.45 mm	0.057 in	2.54 mm	0.1 in	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	2.54 µm	100 µin	Tin	0.068 in	1.73 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 4015-0-15-80-30-14-10-0	-55 C	125 °C	Beryllium Copper	Solder	1.45 mm	0.057 in	2.54 mm	0.1 in	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	0.25 Ám	10 Áin	Gold	0.068 in	1.73 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 4015-0-15-15-30-14-10-0	-55 C	125 °C	Beryllium Copper	Solder	1.45 mm	0.057 in	2.54 mm	0.1 in	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	0.25 Ám	10 Áin	Gold	0.068 in	1.73 mm	0.1 in	2.54 mm

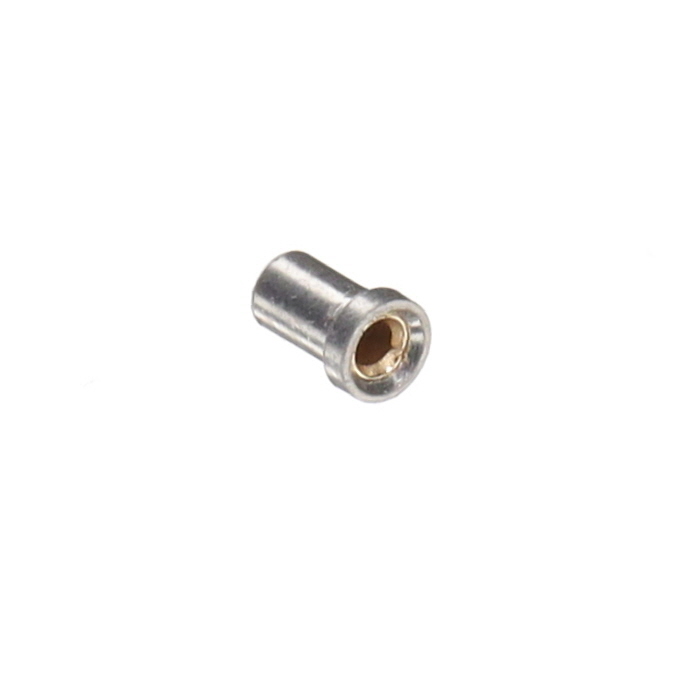

Mill-Max Manufacturing Corp. 4015-0-43-80-30-27-10-0	-55 C	125 °C	Beryllium Copper	Solder	1.45 mm	0.057 in	2.54 mm	0.1 in	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	0.76 Ám	30 Áin	Gold	0.068 in	1.73 mm	0.1 in	2.54 mm	Knockout Bottom (Organic Fiber Plug®)

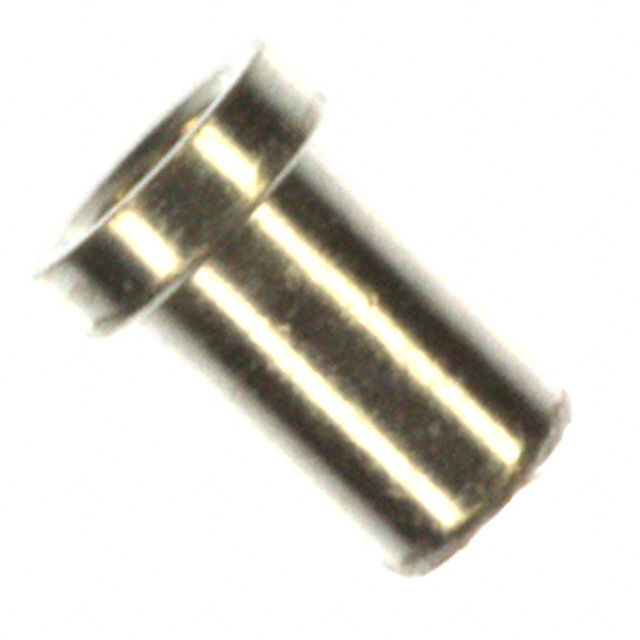

Mill-Max Manufacturing Corp. 4015-0-67-80-30-27-10-0	-55 C	125 °C	Beryllium Copper	Solder	1.45 mm	0.057 in	2.54 mm	0.1 in	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	0.76 Ám	30 Áin	Gold	0.068 in	1.73 mm	0.1 in	2.54 mm	Knockout Bottom (Organic Fiber Plug®)
