GRPB041 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 4POS 1.27MM
| Part | Material Flammability Rating | Style | Contact Shape | Mounting Type | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Termination | Number of Rows | Number of Positions | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Insulation Material | Contact Finish - Mating | Fastening Type | Contact Finish - Post | Insulation Height | Insulation Height | Contact Type | Shrouding | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Overall Contact Length [x] | Overall Contact Length | Contact Material | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

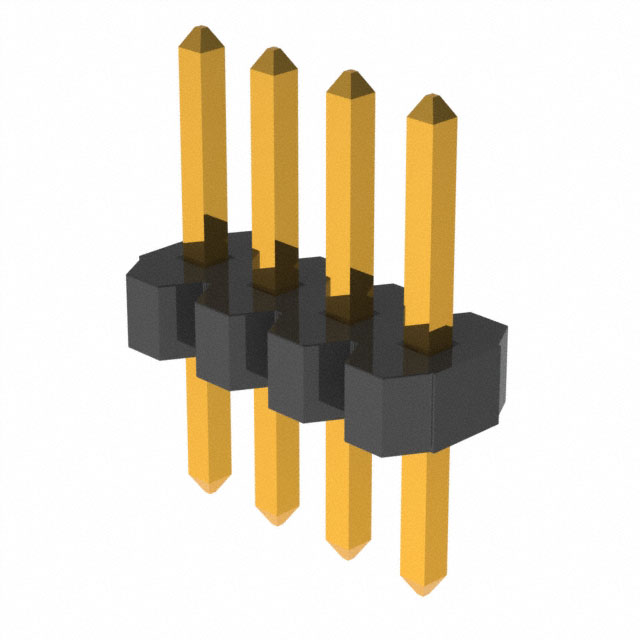

 Sullins Connector Solutions | UL94 V-0 | Board to Board Cable | Square | Through Hole | 3 mm | 0.118 in | -40 °C | 105 ░C | Header | Solder | 1 | 4 | Flash | 0.091 in | 2.3 mm | Nylon 9T Polyamide (PA9T) | Gold | Push-Pull | Gold | 0.039 " | 1 mm | Male Pin | Unshrouded | 0.05 in | 1.27 mm | All | 0.248 in | 6.3 mm | Brass | Flash |

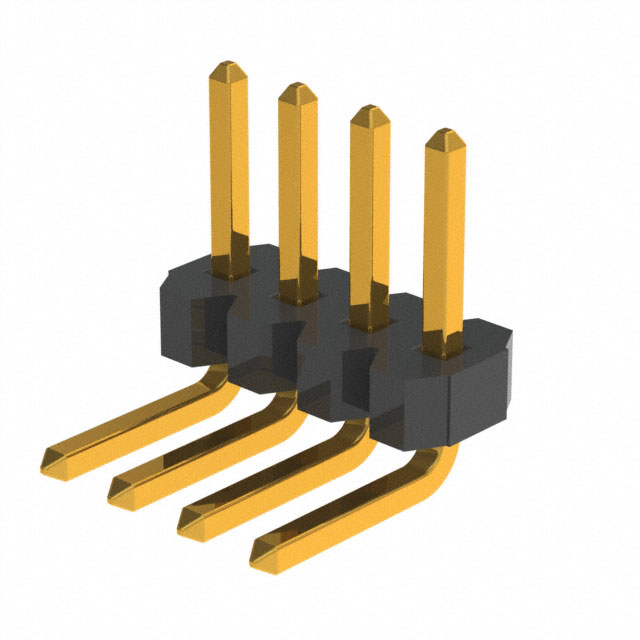

 Sullins Connector Solutions | UL94 V-0 | Board to Board Cable | Square | Through Hole Right Angle | 3 mm | 0.118 in | -40 °C | 105 ░C | Header | Solder | 1 | 4 | Flash | 0.098 in | 2.5 mm | Nylon 9T Polyamide (PA9T) | Gold | Push-Pull | Gold | 0.084 in | 2.14 mm | Male Pin | Unshrouded | 0.05 in | 1.27 mm | All | Brass | Flash |
