395-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

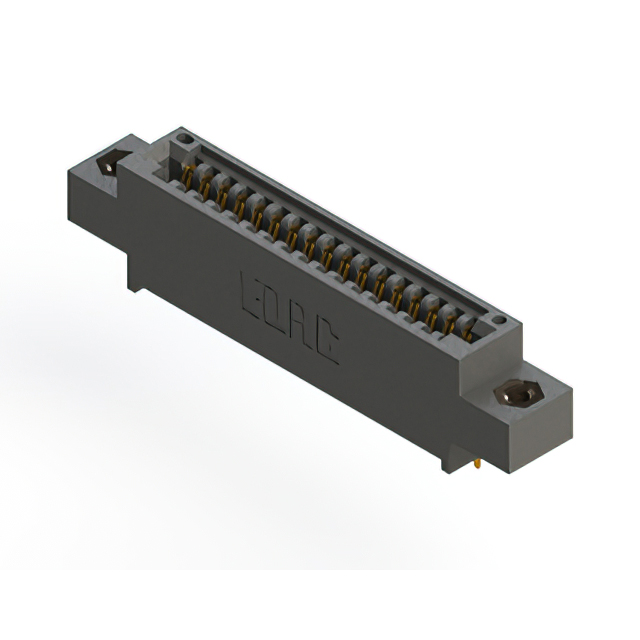

CONN EDGE SINGLE FML 17POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Features | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row [custom] | Gender | Contact Finish | Contact Material | Color | Card Type | Contact Type | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | Card Guides | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | 3.25 mm | 0.128 " | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | 3.25 mm | 0.128 " | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Solder | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Solder | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Solder | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | 3.25 mm | 0.128 " | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | Card Guides | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Solder | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | Card Guides | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Solder | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | Card Guides | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 17 | Female | Gold | Copper Alloy | Black | Non Specified - Single Edge | Cantilever | Through Hole |
