A221Y06V Series
Manufacturer: Nicomatic
Beta
⌘K

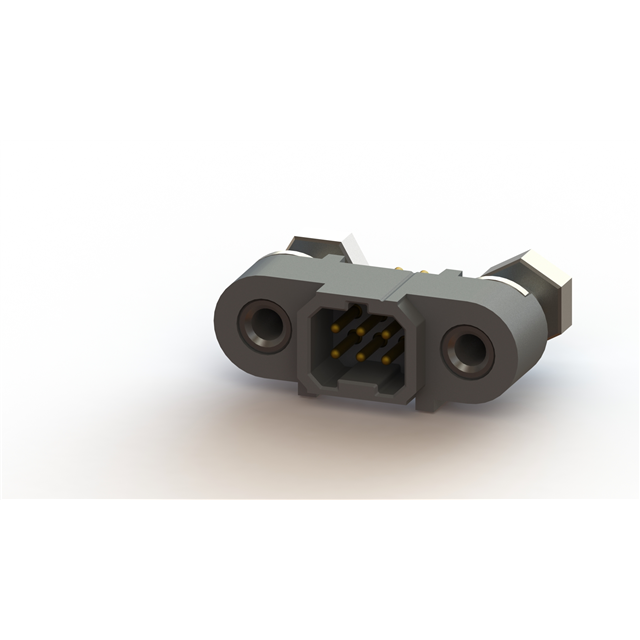

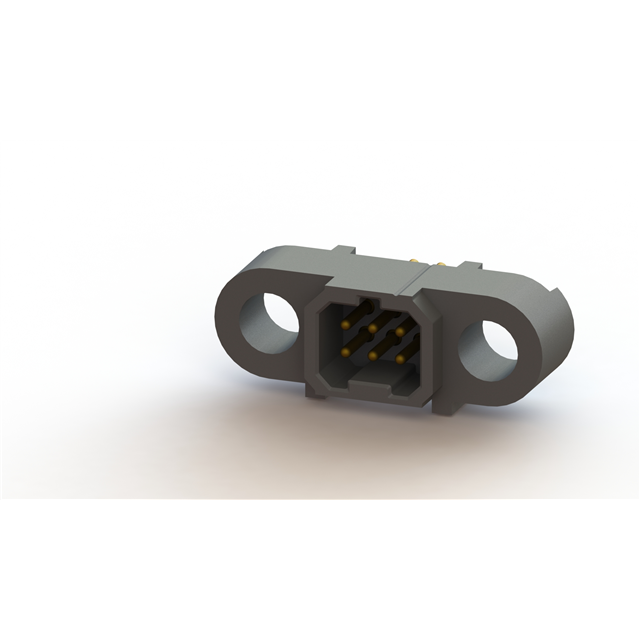

MALE 6POS STRAIGHT TRGH 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows [custom] | Insulation Color | Material Flammability Rating | Contact Material | Current Rating (Amps) | Features | Connector Type | Voltage Rating | Style | Contact Finish - Mating | Shrouding | Insulation Material | Termination | Number of Positions | Mounting Type | Contact Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | 2 | Black | UL94 V-0 | Copper Alloy | 2.5 A | Mating Flange Mounting Flange Mounting Hardware | Header | 600 VAC | Board to Board Cable | Gold | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Solder | 6 | Through Hole | Male Pin | Gold | 1 mm | 0.039 in | 4.1 mm | 0.161 in | All | 0.039 in | 1 mm | Circular | -65 ░C | 200 °C | 5.9 µin | 0.15 µm | |
 Nicomatic | 0.15 µm | 5.9 µin | 2 | Black | UL94 V-0 | Copper Alloy | 2.5 A | Mating Flange | Header | 600 VAC | Board to Board Cable | Gold | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | Solder | 6 | Through Hole | Male Pin | Gold | 1 mm | 0.039 in | 4.1 mm | 0.161 in | All | 0.039 in | 1 mm | Circular | -65 ░C | 200 °C | 5.9 µin | 0.15 µm | Push-Pull |
