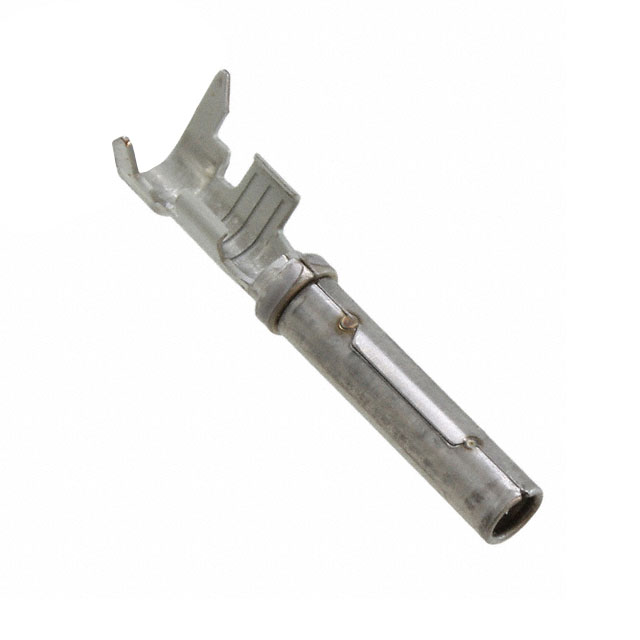

084525 Series

Manufacturer: Molex

Catalog

CONN SOCKET 14-18AWG TIN

Part	Contact Finish	Contact Material	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket
Molex 0845250017	Tin	Copper Alloy	Power Stamped	2.54 µm	100 µin	Compression and Crimp	14 AWG	18 AWG	Socket

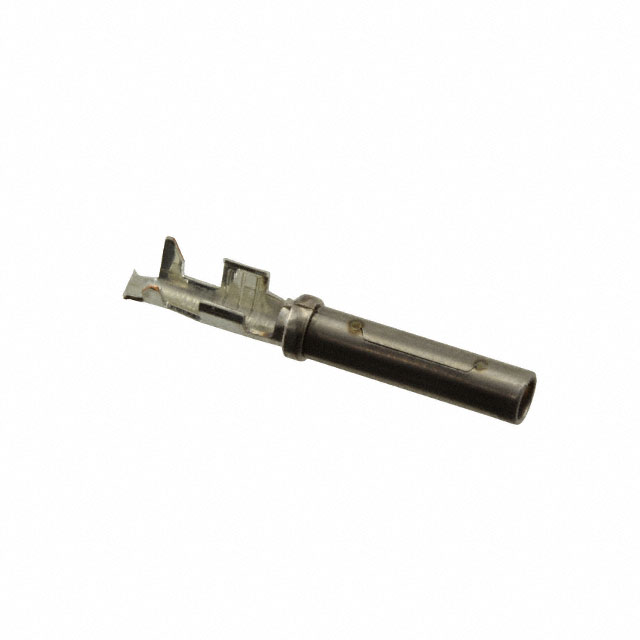

Molex 0845250032	Gold	Copper Alloy	Power Stamped	0.76 Ám	30 Áin	Compression and Crimp	16 AWG	18 AWG	Socket
Molex 0845250046	Gold	Copper Alloy	Power Stamped	0.76 Ám	30 Áin	Compression and Crimp	14 AWG	18 AWG	Socket
Molex 0845250053	Tin	Copper Alloy	Power Stamped	2.54 µm	100 µin	Compression and Crimp	16 AWG	20 AWG	Socket
Molex 0845250025	Tin	Copper Alloy	Power Stamped	2.54 µm	100 µin	Compression and Crimp	14 AWG	18 AWG	Socket
