BD9152MUV Series

4.5-5.5V 1.5A/1.5A 2ch Buck converter

Catalog

4.5-5.5V 1.5A/1.5A 2ch Buck converter

Part	Package / Case	Output Type	Supplier Device Package	Number of Outputs	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed) [Min]	Frequency - Switching	Function	Current - Output	Topology	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Synchronous Rectifier

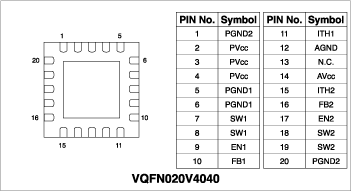

Rohm Semiconductor BD9152MUV-E2	20-VFQFN Exposed Pad	Adjustable (Fixed)	VQFN020V4040	2	3.3 V	0.8 V	1 MHz	Step-Down	1.5 A	Buck	Surface Mount	4.5 V	5.5 V	85 °C	-40 °C	Positive

Catalog

4.5-5.5V 1.5A/1.5A 2ch Buck converter

Description

ROHM's high efficiency dual step-down switching regulator BD9152MUV is a power supply designed to produce a low voltage including 3.3, 1.2volts from 5.0volts power supply line. Offers high efficiency with our original pulse skip control technology and synchronous rectifier. Employs a current mode control system to provide faster transient response to sudden change in load.
