1825040 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
SWITCH PUSHBUTTON SPDT 6A 125V
| Part | Electrical Life | Circuit | Current Rating (Amps) | Actuator Type | Mounting Type | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Type | Switch Function | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

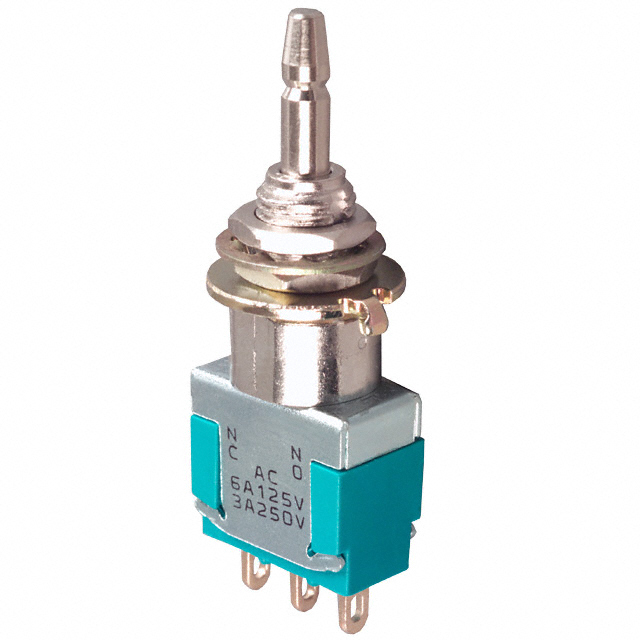

 TE Connectivity Raychem Cable Protection | 50000 Cycles | SPDT | 4 A 6 A | Plunger for Cap | Panel Mount Rear | 125 V | 0.25 in | Standard | On-On | Solder Lug | -20 C | 80 C | No Marking | 28 V |

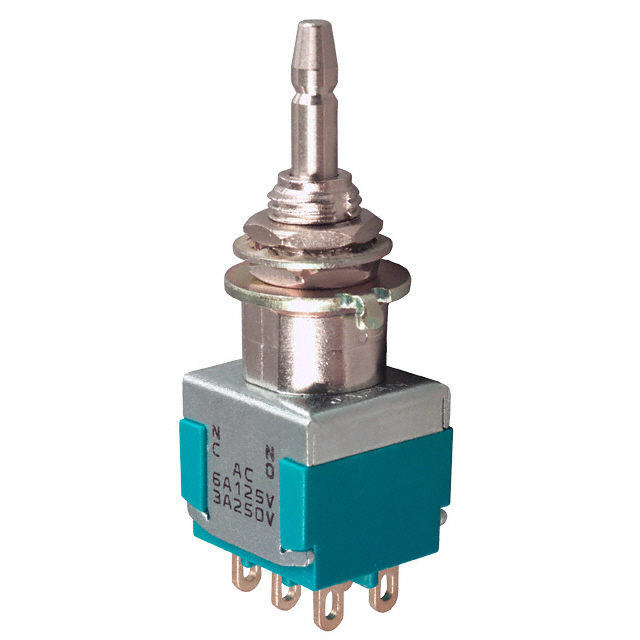

 TE Connectivity Raychem Cable Protection | 50000 Cycles | DPDT | 4 A 6 A | Plunger for Cap | Panel Mount Rear | 125 V | 0.25 in | Standard | On-Mom | Solder Lug | -20 C | 80 C | No Marking | 28 V |
 TE Connectivity Raychem Cable Protection | 50000 Cycles | SPDT | 4 A 6 A | Plunger for Cap | Panel Mount Rear | 125 V | 0.25 in | Standard | On-Mom | Solder Lug | -20 C | 80 C | No Marking | 28 V |
