042228 Series
Manufacturer: Molex
Beta
⌘K

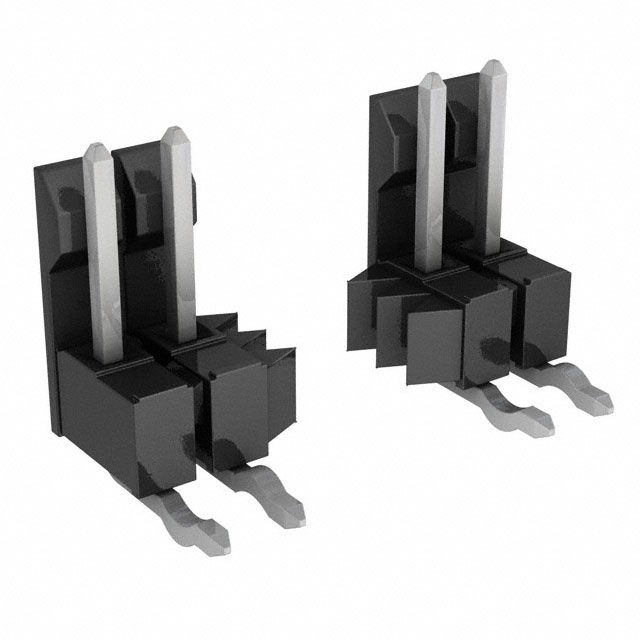

CONN HEADER R/A 9POS 2.54MM
| Part | Mounting Type | Number of Rows | Number of Positions Loaded | Insulation Color | Contact Shape | Fastening Type | Insulation Material | Number of Positions | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Finish - Post | Connector Type | Material Flammability Rating | Contact Type | Style | Applications | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Through Hole Right Angle | 1 | 8 | Black | Square | Friction Lock | Glass Filled Nylon Polyamide (PA) | 9 | 7.49 mm | 0.295 in | 0.1 in | 2.54 mm | 7.21 mm | 0.284 in | 2.54 µm | 100 µin | 0.135 in | 3.43 mm | 2.54 çm | 100 çin | Kinked Pin Solder | Tin | Breakaway Header | UL94 V-0 | Male Pin | Board to Board Cable | Automotive General Purpose Medical Telecommunications | Shrouded - 1 Wall |
