WR9QE1500 Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 18W

Part	Polarization	Power (Watts)	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector	Output Connector [x]	Region Utilized	Voltage - Output	Input Type	Form	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	No Load Power Consumption	Input Connector	Standard Number	Cord Length	Cord Length	Applications	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]

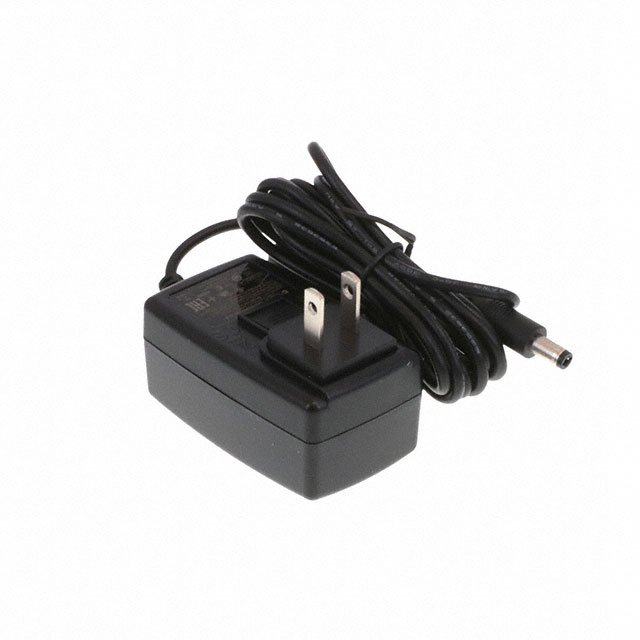

GlobTek, Inc. WR9QE1500LCPNNAR6B	Positive Center	18 W	1.5 A	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	12 V	Multi-Blade (Sold Separately)	Wall Mount	74 mm	43.5 mm	1.71 in	34 mm	1.34 "	2.91 in	40 °C	0 °C	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UkrSEPRO VCCI	75 mW	Multi-Blade (Sold Separately)	60950-1 62368-1	1.83 m	72 in	ITE (Commercial)	Level VI	264 VAC	90 VAC

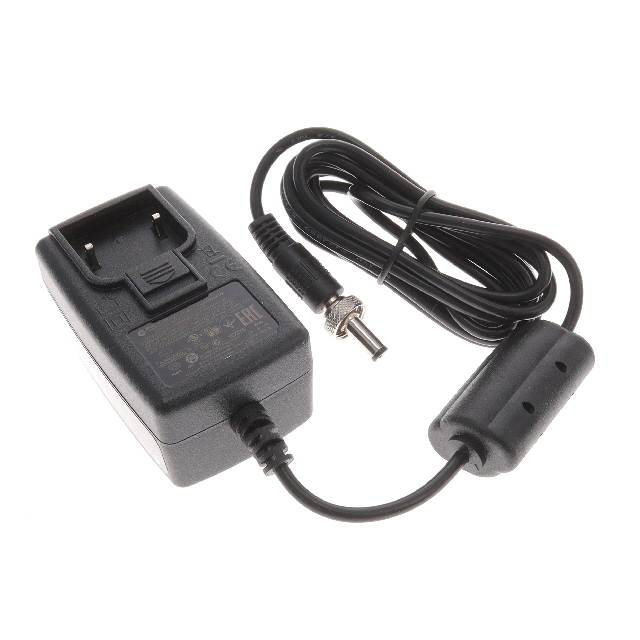

GlobTek, Inc. WR9QE1500C2LWPN(R6B)	Positive Center	18 W	1.5 A				International	12 V	Multi-Blade (Sold Separately)	Wall Mount							40 °C	0 °C	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UkrSEPRO VCCI	75 mW	Multi-Blade (Sold Separately)	60950-1 62368-1	1.83 m	72 in	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC

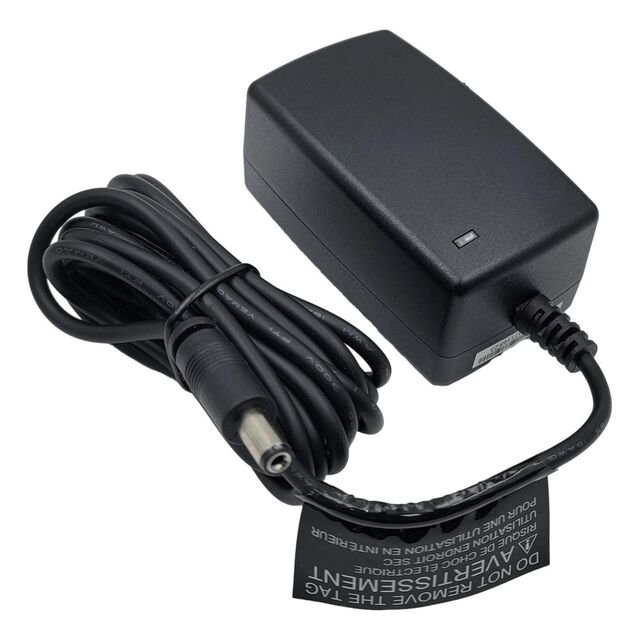

GlobTek, Inc. WR9QE1500CCP-NM(R6B)	Positive Center	18 W	1.5 A	2.1 mm 5.5 mm	Barrel Plug	11 mm	International	12 V	Multi-Blade (Sold Separately)	Wall Mount	74 mm	43.5 mm	1.71 in	36.8 mm	1.45 in	2.91 in	40 °C	-20 ░C	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	75 mW	Multi-Blade (Sold Separately)	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	1.83 m	72 in	Household Appliances ITE (Commercial) Medical	Level VI	264 VAC	90 VAC

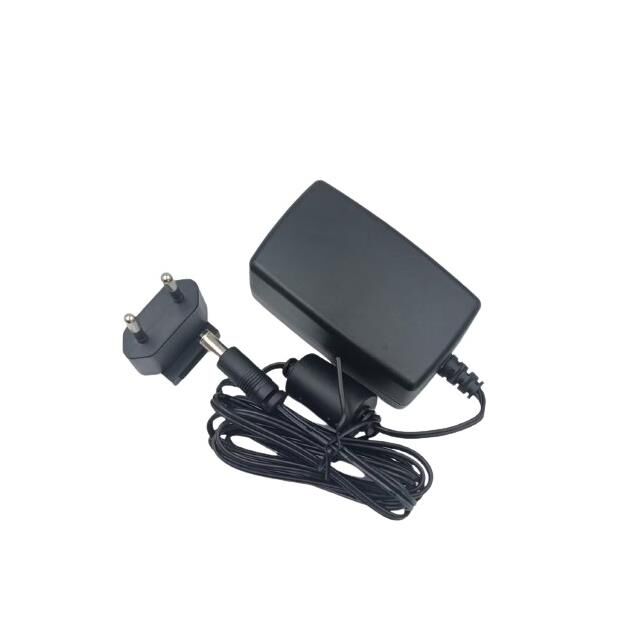

GlobTek, Inc. WR9QE1500LCPNEU(R6B)	Positive Center	18 W	1.5 A	2.5 mm 5.5 mm	Barrel Plug	11 mm	International	12 V	Multi-Blade (Sold Separately)	Wall Mount							40 °C	0 °C	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UkrSEPRO VCCI	75 mW	Multi-Blade (Sold Separately)	60950-1 62368-1	1.53 m	60.2 in	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC
GlobTek, Inc. WR9QE1500KCP-N(R6B)	Positive Center	18 W	1.5 A	1.35 mm 3.5 mm	Barrel Plug	9.5 mm	International	12 V	Multi-Blade (Sold Separately)	Wall Mount	74 mm	43.5 mm	1.71 in	35.3 mm	1.39 in	2.91 in	40 °C	0 °C	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UkrSEPRO VCCI	75 mW	Multi-Blade		1.5 m	60.2 in	ITE (Commercial)	CoC Tier 2 Level VI	264 VAC	90 VAC
